TE Connectivity / AMP

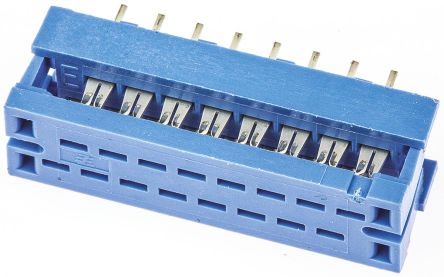

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 电缆停止 | Without |
| 交配极化 | Without |
| 配合锁扣 | Without |
| 要终止 | Printed Circuit Board |
| 安装耳 | Without |
| 触点区域镀层材料 | Tin |
| 端子尾部电镀 | Tin over Nickel |
| 中心线矩阵（毫米） | 2.54 x 2.54 [.100 x .100] |
| 外壳材料 | Thermoplastic Glass Reinforced |
| 连接器类型 | DIP (Dual In Line Package) |
| 外壳颜色 | Blue |
| PCB保持力特性 | No |
| 性别 | Plug |
| 触点类型 | Flat |
| 壳体防火等级 | UL 94V-0 |
| 应力消除 | Without |
| RoHSELV符合记录 | Always was RoHS compliant |
| 位置数 | 16 |
| 触点材料 | Beryllium Copper |
| 产品特点 | Feed Through |
| 安装类型 | Through Hole |
| 电缆端接 | IDC |
| 间距 | 0.100" (2.54mm) |
| 触点表面涂层 | Tin |
| 封装 | Bulk |
| 线规 | 26-28 AWG, Stranded or Solid |
| 行数 | 2 |
| 颜色 | Blue |
| 标准包装 | 22 |
| Contact Finish Thickness | 100µin (2.54µm) |
| 行间距 | 0.100" (2.54mm) |
| 其他名称 | 16585258 |
| 加载位置的数目 | All |
| RoHS指令 | Lead free / RoHS Compliant |
| 身体上的取向 | Right Angle |
| 触点电镀 | Tin over Nickel |
| 额定电流 | 1A |
| 最高工作温度 | +125°C |
| 最低工作温度 | -55°C |
| 触点数 | 16 |
| 端接方式 | IDT |
| 工厂包装数量 | 22 |
| 产品种类 | Headers & Wire Housings |
| 系列 | AMP-LATCH |
| 端接类型 | Through Hole |
| 联系人性别 | Pin (Male) |
| 位置/触点数 | 16 |
| 商品名 | AMP-LATCH |
| 产品类型 | Plugs - PCB |
| RoHS | RoHS Compliant |
| 工作温度范围 | -55C to 125C |
| 额定电流（最大值） | 1/Contact A |
| 安装风格 | Cable |
| 类型 | IDC Connector |
| 联系方式行数 | 2 |
| 产品长度（mm ） | 25.55 mm |
| 产品厚度（毫米） | 7.11 mm |
| 产品高度（mm ） | 7.57 mm |
| 间距（mm） | 2.54 mm |
| 产品范围 | :TE - 622 Series |
| 接触端子 | :IDC / IDT |
| No. of Contacts | :16 |
| No. of Rows | :2 |
| 节距 | :2.54mm |
| Connector Mounting Orientation | :Cable |
| 外部深度 | :7.11mm |
| External Length / Height | :6.5mm |
| 可燃性等级 | :UL94V-0 |
| IDC Cable Pitch | :0.05" |
| 绝缘电阻 | :1Gohm |
| 引线长度 | :2.5mm |
| 引线间距 | :2.54mm |
| 材质 | :Glass reinforced thermo plastic |
| No. of Mating Cycles | :200 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| PCB孔直径 | :0.9mm |
| Row Pitch | :2.54mm |
| 耐压 | :500V |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| NumberofContacts | 16 |
| PrimaryType | IndustrialRectangular |
| 端子 | IDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
