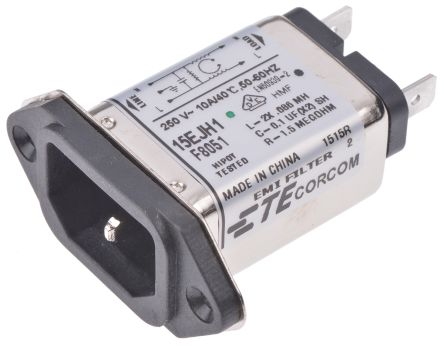

H1,EJH1-Series_1-15A.jpg)
TE Connectivity / Corcom
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | 6609008-5 |
| 子类别 | Power Line Filter |
| 交货期 | 59 Days |
| 安装类型 | Panel Mount, Screw Hole |
| 端接类型 | Quick Connect |
| 电流 | 15A |
| 保险丝盒 | Fuse Not Required |
| 电压 | 250VAC |
| 标准包装 | 40 |
| 滤波器类型 | Medical RFI |
| 类型 | IEC 320-C14 (Male Pins) |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 40 |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 额定电流 | 15 A |
| 过滤 | Yes |
| 额定电压 | 250 VAC |
| 系列 | EJH (1-20 A) |
| 开关功能 | Not Switched |
| 封装 | Bulk |
| 融合 | No |
| 零件号别名 | 6609008-5 |
| RoHS | RoHS Compliant |
| Leakage Current Max | :0.35mA |
| Filter Terminals | :Quick Connect, Solder |
| Approval Bodies | :CSA, UL, VDE |
| 外部深度 | :54.61mm |
| External Length / Height | :24.38mm |
| 外宽 | :51.76mm |
| 泄漏电流 | :0.35mA |
| No. of Phases | :Single |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.036 |
| Tariff No. | 85369010 |
| Brand/Series | Corcom/EJHSeries |
| Current,Leakage | 2/5μA |
| Current,Rating | 15A |
| CutOut,Panel | 30.48×20.8mm(FrontMount),30.48×22.9mm(BackMount) |
| 外形尺寸 | 24.38mmH×54.61mmW×51.76mmL |
| FilterType | EMI/RFI |
| Frequency,Operating | 50/60Hz |
| HipotRating,LinetoGround | 1500VAC |
| HipotRating,LinetoLine | 1450VDC |
| MountingType | Flange |
| 第一阶段 | 1 |
| PrimaryType | AC |
| TycoPartNumber | 6609008-5 |
| Voltage,Operating | 250VAC |
| Voltage,Rating | 250VAC |
