te connectivity / p&b

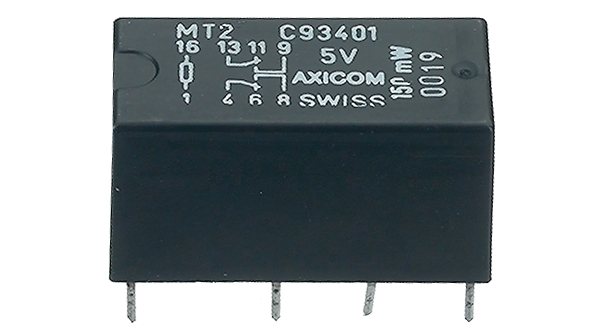

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Signal Relay |
| 触点形式 | DPDT |
| 最大额定电流 | 2 A |
| 直流线圈电压 | 5 V |
| 安装 | Through Hole |
| 线圈电流 | 29.76 mA |
| 线圈电阻 | 168 Ohm |
| 触点材料 | Silver Nickel/Gold |
| 最大交流电压额定值 | 250 V |
| 最大直流额定电压 | 220 V |
| 工作温度 | -55 to 85 °C |
| 标准包装 | Bulk |
| 接触电阻 | 70mΩ |
| Contacts configuration | DPDT |
| Body dimensions | 20.2 x 10 x 11mm |
| Mechanical durability | 100000000cycles |
| Switched current | 2A |
| Coil power consumption | 150mW |
| Relay type | electromagnetic, signal |
| Coil voltage max | 13.5V DC |
| Switched voltage | max 125V DC, max 250V AC |
| Gross weight | 0.01 kg |
| Operating temperature | -55...85°C |
| Coil voltage min | 3.6V DC |
| Rated coil voltage | 5V DC |
| Multiplicity | 1 |
| Relay series | MT2 |
| 密封 | IP67 |
| 线圈电阻 | 168Ω |
| 操作功能 | Single Side Stable |
| Approx Dimensions (L x W x H) (mm [in]) | 20.20 x 10.00 x 11.00 [.795 x .394 x .433] |
| 线圈抑制二极管 | Without |
| 线圈电压 | 5 VDC |
| 符合RoHS / ELV符合记录 | Converted to comply with RoHS directive |
| 电流 | 1.25 Amps |
| Coil Resistance (ohm) | 168 |
| Dielectric Between Coil and Contacts (V rms) | 1100 |
| Coil Power, Nominal (VA) | 150 |
| 选项 | n/a |
| FCC Part 68 Isolation | Yes |
| MainCategory | Relays |
| Compatible Socket | n/a |
| 极化 | No |
| SubCategory | Signal Relay |
| 引脚配置 | DIP |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C |
| 符合RoHS / ELV标准 | RoHS compliant, ELV compliant |
| 联系配置 | 2C DPDT |
| DIP Package Style | n/a |
| Coil Magnetic System | Non Polarized, Monostable |
| 驱动系统 | DC |
| 评论 | n/a |
| 批准标准 | CECC Approved, CSA Certified, UL Recognized |
| 端接类型 | Through Hole |
| 触点类型 | Bifurcated |
| 外壳 | Immersion Cleanable |
| Dimensions L x W x H | 20.2 x 10 x 11 mm |
| Switching power | 30 |
| Rcoil | 168 |
| Switching voltage | 150 |
| 联系方式 | 2 change-over (CO) |
| Pcoil | 150 |
| Switching current | 2 A @ 15 VDC |
| Manufacturer Article n° | C93401 |
| 测试电压 | 1 |
| 连接方式 | THD |
| 间距 | 2.54 |
| Temperature range | -55...+85 °C |
| Ucoil | 5 |
| Protection rating | IP 67 |
| Contact material | AgNi gilded |
