te connectivity / amp

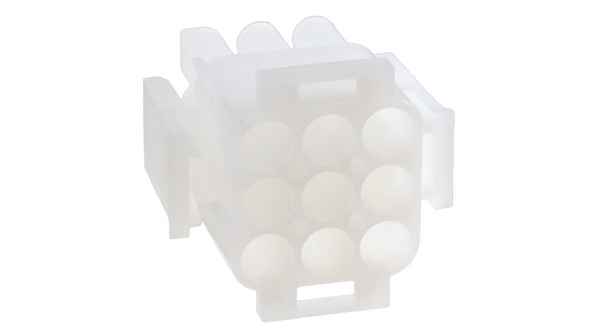

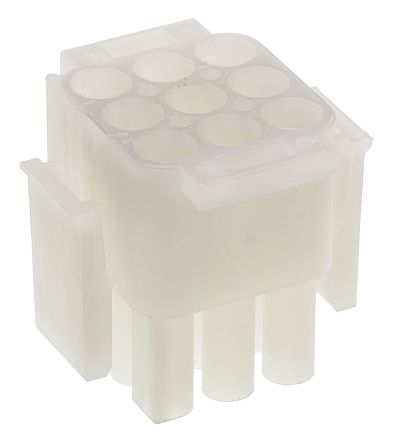

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 间距 | 6.35 mm |
| 触点数 | 9 |
| 行数 | 3 |
| 性别 | PL |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 封装 | Bulk |
| 安装类型 | Free Hanging (In-Line) |
| 颜色 | Natural |
| 连接器类型 | Plug |
| 位置数 | 9 |
| 注 | Contacts Not Provided |
| 紧固型 | Latch Lock |
| 触点类型 | Male or Female |
| 行间距 | 0.250" (6.35mm) |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 27.43mm |
| 适用于 | Centerline Splash Proof/Sealed Connector |
| 外壳材料 | Nylon |
| 长度 | 27.38mm |
| 系列 | MATE-N-LOK |
| 工厂包装数量 | 1 |
| 产品种类 | Pin & Socket Connectors |
| 额定电流 | 19 A |
| 额定电压 | 600 V |
| 端接类型 | Crimp |
| 联系人性别 | Pin (Male) |
| 位置/触点数 | 9 |
| 安装风格 | Free Hanging |
| 产品类型 | Receptacle Housings |
| RoHS | RoHS Compliant |
| 额定电流（最大值） | 19/Contact A |
| 联系方式行数 | 3 |
| 外壳颜色 | Natural |
| 产品长度（mm ） | 27.38 mm |
| 产品厚度（毫米） | 27.43 mm |
| 额定电压最大 | 600VAC |
| 间距（mm） | 6.35 mm |
| No. of Positions | :9 |
| 节距 | :6.35mm |
| 颜色 | :Natural |
| 可燃性等级 | :UL94V-2 |
| 材质 | :Nylon |
| No. of Rows | :3 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Voltage Rating V AC | :600V |
| Weight (kg) | 0.006 |
| Tariff No. | 85369010 |
| Mechanical mounting | for cable |
| 连接器 | plug |
| 额定电压 | 600V |
| Connector variant | w/o terminals |
| Type of pin configuration | 3x3 |
| Connector type | male/female |
| Gross weight | 6 g |
| Connector series | Universal MATE-N-LOK |
| Multiplicity | 1 |
| 针数 | 9 |
| spg | 1 |
| Collective package [pcs] | 1 |
| Contacts pitch | 6.35mm |
