te connectivity / amp

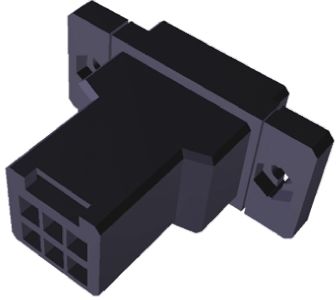

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 间距 | 5.08 mm |
| 触点数 | 6 |
| 行数 | 2 |
| 性别 | PL |
| 线径规格 | 16 AWG |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 评论 | Housing is secured onto panel by push rivet |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 键控 | XX |
| 产品系列 | D-3200M (Drawer Type), D-3200M (Modular Type) |
| 要终止 | Wire |
| 安装 | Panel Mount |
| 包装方式 | Bag |
| 包装数量 | 150 |
| 键控 | Yes |
| 外壳材料 | Nylon |
| 外壳颜色 | Black |
| PCB保持力特性 | No |
| 壳体防火等级 | UL 94V-0 |
| 产品类型 | Housing |
| RoHSELV符合记录 | Always was RoHS compliant |
| 位置数 | 6 |
| 额定电压（VAC ） | 600 |
| 封装 | Bulk |
| 产品特点 | Polarizing Key |
| 安装类型 | Panel Mount |
| 颜色 | Black |
| 连接器类型 | Plug |
| 注 | Contacts Not Provided |
| 触点类型 | Male Pin |
| 行间距 | 0.300" (7.62mm) |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 33.6mm |
| 适用于 | Wire-to-Board Connector |
| 长度 | 41.91mm |
| 系列 | D-3000 |
| 宽度 | 20.32mm |
| 工厂包装数量 | 150 |
| 安装方式 | Straight |
| 产品种类 | Headers & Wire Housings |
| 端接类型 | Crimp |
| 联系人性别 | Pin (Male) |
| 安装风格 | Wire |
| 位置/触点数 | 6 |
| 闭锁类型 | Unlatched |
| RoHS | RoHS Compliant |
| 标准包装 | 150 |
| No. of Positions | :6 |
| 节距 | :5.08mm |
| Connector Body Material | :Glass Filled Thermoplastic |
| Weight (kg) | 0.02 |
| Tariff No. | 85369010 |
| Brand/Series | D-3000Series |
| MountingType | CableMount |
| NumberofContacts | 6 |
| PrimaryType | Connector |
