te connectivity / amp

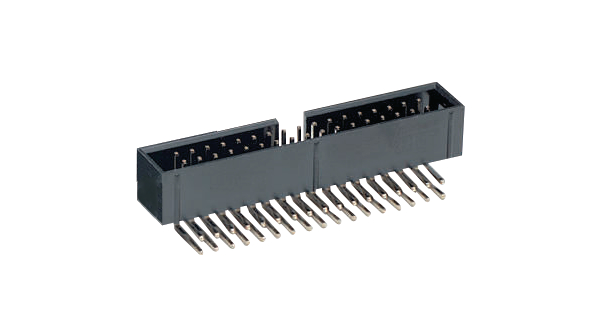

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Shrouded Header |
| 间距 | 2.54 mm |
| 行数 | 2 |
| 触点数 | 14 |
| 性别 | HDR |
| 触点电镀 | Gold Over Nickel |
| 端接方式 | Solder |
| 标准包装 | Trays |
| 插方式 | Center / Dual Polarizing Bar |
| 额定电流 | 1 |
| 额定温度 | Standard |
| PCB安装角度 | Right Angle |
| 房屋类型 | 4-Sided |
| 外壳材料 | Thermoplastic - GF |
| 工作温度 | -40.0 - 105.0 |
| 绝缘电阻 | 5000.0 |
| 弹射插销 | Without |
| 触点电镀触点区域材质 | Gold (10) |
| 位置数 | 14 |
| 简介 | Low |
| 中心线矩阵 | 2.54 x 2.54 |
| Lead Free Solder Processes | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl |
| 端子尾部电镀 | Tin over Nickel |
| 外壳颜色 | Black |
| 头类型 | Pin Header |
| 端子材料 | Brass |
| 联系形状 | Square |
| RoHSELV合规性 | RoHS compliant / ELV compliant |
| PCB保持结构 | Without |
| 连接器类型 | Header |
| 配合方向 | With |
| 批准标准 | UL Listed |
| 引脚长度 | 3.02 |
| 发表尺寸 | 0.64 [.025] |
| UL阻燃等级 | UL 94V-0 |
| 产品线 | AMP-LATCH |
| RoHSELV符合记录 | Always was RoHS compliant |
| 配合锁扣 | Without |
| 身体上的取向 | Right Angle |
| 触点材料 | Phosphor Bronze |
| 系列 | 1-1634689 |
| RoHS指令 | Compliant |
| 工厂包装数量 | 1300 |
| 端接类型 | Through Hole |
| 产品种类 | Headers & Wire Housings |
| 位置/触点数 | 14 |
| 商品名 | AMP-LATCH |
| 产品类型 | Headers |
| 可燃性等级 | UL 94 V-0 |
| 工作温度范围 | - 40 C to + 105 C |
| 联系人性别 | Pin (Male) |
| RoHS | RoHS Compliant |
| 安装方式 | Right |
| 工作温度范围 | -40C to 105C |
| 额定电流（最大值） | 3/Contact A |
| 安装风格 | Through Hole |
| 联系方式行数 | 2 |
| 产品长度（mm ） | 25.4 mm |
| 产品厚度（毫米） | 12.49 mm |
| 产品高度（mm ） | 9.22 mm |
| 间距（mm） | 2.54 mm |
| 接触端子 | :Through Hole Right Angle |
| No. of Contacts | :14 |
| No. of Rows | :2 |
| 节距 | :2.54mm |
| Approval Bodies | :UL |
| 颜色 | :Black |
| Connector Mounting Orientation | :Right Angle |
| Dielectric Strength VAC | :500V |
| 引线间距 | :2.54mm |
| 材质 | :Polyester |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-40°C |
| Weight (kg) | 0.0225 |
| Tariff No. | 85369010 |
| 触点接合长度 | 0.228" (5.80mm) |
| 产品特点 | Polarized |
| 安装类型 | Through Hole, Right Angle |
| 颜色 | Black |
| 触点表面涂层 | Copper Alloy |
| 封装 | Tray |
| 触点类型 | Male Pin |
| 端子 | Solder |
| Contact Finish Thickness | 10µin (0.25µm) |
| 行间距 | 0.100" (2.54mm) |
| 其他名称 | A118185 |
| 加载位置的数目 | All |
| Brand/Series | 1634689Series |
| NumberofContacts | 14 |
| PrimaryType | IndustrialRectangular |
| Electrical mounting | THT |
| 连接器 | socket |
| Multiplicity | 1 |
| Spatial orientation | angled 90° |
| Connector type | male |
| Gross weight | 2.8 g |
| 针数 | 14 |
| 接触镀层 | gold plated |
| spg | 1 |
| Collective package [pcs] | 1 |
| Type of pin configuration | 2x7 |
| Contacts pitch | 2.54mm |
