te connectivity / amp

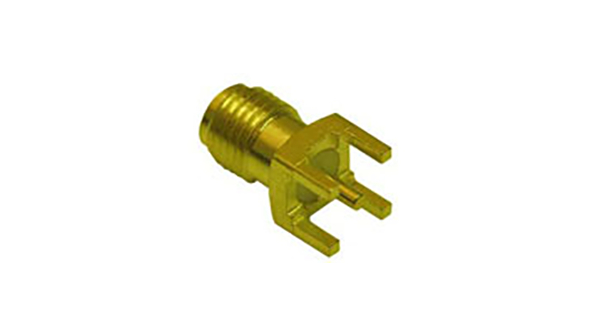

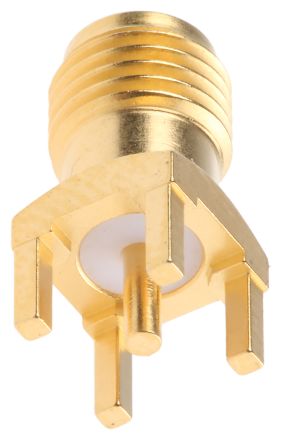

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | SMA |
| 性别 | RCP |
| 阻抗 | 50 Ohm |
| 工作频率 | 0 to 18 GHz |
| 端接方式 | Solder |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 触点材料 | Beryllium Copper |
| 触点电镀 | Gold Over Nickel Over Copper |
| 家庭 | 1478979 |
| 要终止 | PCB |
| 标准包装 | Bulk |
| 中心触点电镀 | Gold |
| 阀体材质 | Stainless Steel |
| 安装类型 | Through Hole |
| 接触端子 | Solder |
| 屏蔽端接 | Solder |
| 中心触点材料 | Beryllium Copper |
| 连接器类型 | Jack, Female Socket |
| 封装 | Bulk |
| 频率 - 最大 | 18GHz |
| 连接器类型 | SMA |
| 外壳颜色 | Gold |
| 机身表面处理 | Gold |
| 绝缘材料 | Polytetrafluoroethylene (PTFE) |
| 紧固型 | Threaded |
| RoHS指令 | Lead free / RoHS Compliant |
| 弧度硬化 | No |
| 端子 | Solder |
| 安装风格 | Through Hole |
| 主体镀层 | Gold Over Nickel |
| 产品长度（mm ） | 6.35 mm |
| 产品厚度（毫米） | 6.35 mm |
| 产品高度（mm ） | 9.5 mm |
| 体风格 | Straight |
| Coaxial Termination | :Solder |
| Coaxial Cable Types | :- |
| Frequency Max | :18GHz |
| Connector Mounting | :PCB |
| Connector Mounting Orientation | :PC Board |
| 接触电阻 | :3mohm |
| 绝缘电阻 | :500Mohm |
| 材质 | :Stainless Steel |
| No. of Mating Cycles | :500 |
| Operating Frequency Max | :18GHz |
| Operating Temperature Max | :165°C |
| Operating Temperature Min | :-65°C |
| 系列 | :- |
| Voltage Rating V AC | :500V |
| Weight (kg) | 0.004 |
| Tariff No. | 85366910 |
| Angle | Straight |
| ContactPlating | Gold |
| Finish,Housing | Gold |
| Material,Dielectric | PTFE |
| MountingType | PCBMount |
| 极性 | Normal |
| PrimaryType | SMA |
| 尺寸 | Standard |
| Electrical mounting | THT |
| Mechanical mounting | on PCBs |
| 连接器 | socket |
| Multiplicity | 1 |
| Connector type | female |
| Spatial orientation | straight |
| Gross weight | 2 g |
| Wave impedance | 50Ω |
| 接触镀层 | gold plated |
| Insulator material | teflon |
| Collective package [pcs] | 1 |
| spg | 1 |
