Schaffner EMC Inc

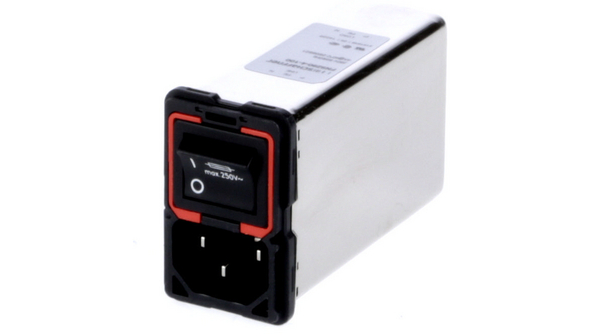

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品特点 | Fuse Holder, Shielded, Switch On/Off, Non-Illuminated |
| 安装类型 | Panel Mount, Screw Hole |
| 端接类型 | Spring Cage |
| 电流 | 4A |
| 保险丝盒 | Included |
| 电压 | 250VAC |
| 标准包装 | 40 |
| 滤波器类型 | General Purpose |
| 类型 | IEC 320-C14 (Male Pins) |
| 产品 | Inlets |
| 可燃性等级 | UL 94 V-2 |
| 融合 | Yes |
| 额定电压 | 250 VAC |
| 系列 | FN9290 |
| 工作温度范围 | - 25 C to + 85 C |
| 过滤 | Yes |
| 单位重量 | 5.220546 oz |
| 身高 | 76.8 mm |
| 安装风格 | Flange |
| 宽度 | 32 mm |
| 开关功能 | Switched |
| 长度 | 49.8 mm |
| 电感 | 1.7 mH |
| 额定电流 | 4 A |
| RoHS | RoHS Compliant |
| Capacitance,Cx | 220nF |
| Capacitance,Cy | 1.5/0.47nF |
| Current,Leakage | 311μA |
| Current,Rating | 4A |
| CutOut,Panel | 32Lx49.8Wmm |
| FilterType | IEC,Inlet |
| 性别 | Male |
| MountMethod | Front,Rear |
| MountingType | Panel,Flanged |
| NumberofPoles | 2(Fuse),2(Switch) |
| 电阻 | 1000kOhms |
| Temperature,Operating | -25to85°C |
| 端子 | ConnectorBlock |
| 版本 | Standard |
| Voltage,Rating | 250VAC |
| RoHS指令 | RoHS Compliant Part |
| Capacitance, CX | 220 nF |
| Capacitance, CY | 1.5 nF |
| Attenuation @ 150 MHz | 30 |
| 额定电压 | 250 |
| 额定电流 | 4 A |
| Dimensions H x W x D | 46 x 28 x 75 mm |
| 深度 | 75 |
| 漏电流 | <311 µA |
| Termination type | Spring Clamp Terminals |
| Attenuation @ 10 MHz | 68 |
| Temperature range | -25...+85 °C |
| Protection rating | IP 40 |
| Rated inductance | 1.7 mH |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
