Schaffner

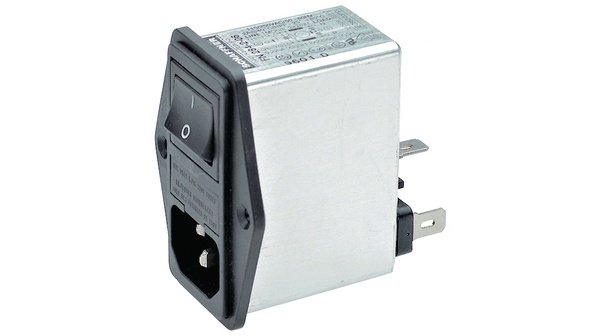

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品长度 | 50 |
| 欧盟RoHS指令 | Compliant |
| 产品厚度 | 64.8 |
| 性别 | M |
| 身体上的取向 | Straight |
| 最大额定电压 | 250 |
| 产品高度 | 65 |
| 端口数 | 1 |
| 触点数 | 3 |
| 工作频率 | 50 to 400 |
| 端接方式 | Spade/Solder |
| Maximum Current Rating | 2 |
| 类型 | Filtered |
| 安装 | Flange Mount |
| 其他硬件 | Switch/Fuse |
| 卖备选方案 | FN284-2/06 |
| 工业别名 | FN 284-2/06, FN284-2/06 |
| 子类别 | Power Entry Module |
| 交货期 | 84 Days |
| 产品特点 | Fuse Holder, Switch On/Off Non-Illuminated |
| 安装类型 | Panel Mount, Screw Hole |
| 端接类型 | Quick Connect |
| 电流 | 2A |
| 保险丝盒 | Included |
| 电压 | 250VAC |
| 标准包装 | 40 |
| 滤波器类型 | General Purpose |
| RoHS指令 | Lead free / RoHS Compliant |
| 额定电流 | 2A |
| 深度 | 64.8mm |
| 保险丝规格 | 5 Dia. x 20mm |
| 身高 | 65mm |
| 保险丝数 | 2 |
| 工作频率 | 50 → 400Hz |
| 额定电压 | 250 V ac |
| 宽度 | 50mm |
| 外壳材料 | Metal |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 融合 | Yes |
| 过滤 | Yes |
| 工作温度范围 | - 25 C to + 85 C |
| 连接器类型 | Power Entry Modules |
| 安装风格 | Flange |
| 开关功能 | Switched |
| 可燃性等级 | UL 94 V-2 |
| RoHS | RoHS Compliant |
| 工作温度范围 | -25C to 85C |
| 额定电流（最大值） | 2 A |
| 触点总数 | 3 POS |
| 产品长度（mm ） | 50 mm |
| 产品厚度（毫米） | 64.8 mm |
| 产品高度（mm ） | 65 mm |
| 额定电压最大 | 250VAC |
| Leakage Current Max | :373µA |
| 电容 | :0.22µF |
| Inductance Min | :2mH |
| Filter Terminals | :Quick Connect |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, SEMKO, SEV, UL, VDE |
| Capacitance X | :220nF |
| Capacitance Y | :2.2nF |
| 外部深度 | :43.1mm |
| External Length / Height | :65mm |
| 外宽 | :50mm |
| Fuse Size Held | :5mm x 20mm |
| 泄漏电流 | :373µA |
| No. of Fuses | :2 |
| No. of Phases | :Single |
| Panel Cut-out Depth | :60mm |
| Panel Cutout Width | :29mm |
| Supply Frequency Max | :60Hz |
| Supply Frequency Min | :50Hz |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.14 |
| Tariff No. | 85322900 |
| Capacitance,Cx | 220nF |
| Capacitance,Cy | 2.2nF |
| Current,Leakage | 373μA |
| Current,Rating | 2A |
| CutOut,Panel | 29×60mm |
| FilterType | IEC,Inlet |
| 电感 | 7.5mH |
| MountMethod | Rear |
| MountingType | Panel |
| NumberofPoles | 2(Fuseholder),2(LineSwitch) |
| 电阻 | 1000Kilohms |
| SchaffnerPartNumber | 284-905 |
| Temperature,Operating | -25to+85°C |
| 端子 | Solder/Spade |
| Thickness,Panel | 0.8-3mm |
| 版本 | Standard |
| Voltage,Rating | 250VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
