Red Lion Controls

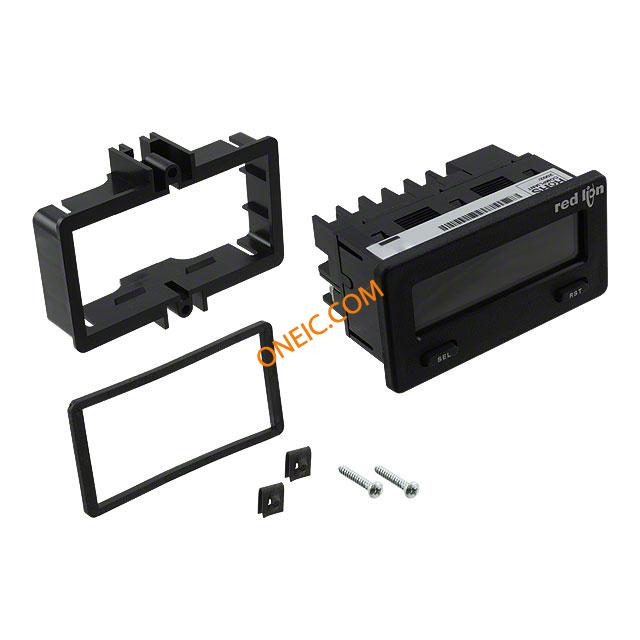

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 显示器类型 | LCD |
| 测量范围 | 0 ~ 200mVDC to 0 ~ 200VDC |
| 安装类型 | Panel Mount, Rear Mounting Clip |
| 显示字符 - 高度 | 0.480" (12.19mm) |
| 显示方式 | Black Characters, Grey Background |
| 类型 | Voltage (Voltmeter) |
| 显示位数 | 5 |
| 校准 | Required Periodically |
| 温度系数 | 70ppm/°C |
| 工作温度 | -35°C ~ 75°C |
| 电压 - 电源 | 9 ~ 28VDC |
| 面板开孔尺寸 | Rectangular - 68.00mm x 33.00mm |
| 标准包装 | 1 |
| 端子 | Screw Terminals |
| 显示器正面尺寸 | 2.95" W x 1.54" H (74.9mm x 39.1mm) |
| 产品特点 | Mounting Clip, NEMA 4X/IP65 Sealing Gasket |
| No. of Digits / Alpha | :5 |
| Meter Function | :DC Millivolts / DC Volts |
| Meter Range | :0mV to 200mV, 0V to 2V, 0V to 20V, 0V to 200V |
| 数字高度 | :12.2mm |
| Panel Cutout Height | :33mm |
| Panel Cutout Width | :68mm |
| Supply Voltage Range | :9V DC to 28V DC |
| Operating Temperature Min | :-35°C |
| Operating Temperature Max | :75°C |
| SVHC | :No SVHC (20-Jun-2013) |
| 外部深度 | :43.4mm |
| External Length / Height | :39.1mm |
| 外宽 | :74.9mm |
| 工作温度范围 | :-35°C to +75°C |
| Supply Voltage AC Max | :250V |
| Supply Voltage AC Min | :85V |
| Supply Voltage DC Max | :+28V |
| Supply Voltage DC Min | :+9V |
| Weight (kg) | 0.4 |
| Tariff No. | 85312020 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
