Rabbit Semiconductor

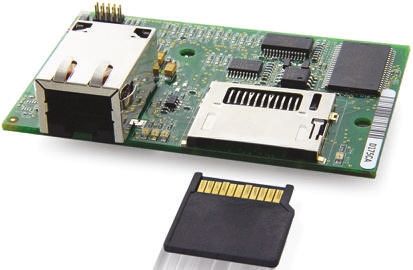

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Development Boards & Kits - Other Processors |
| RoHS | No |
| 产品 | Development Kits |
| 工具用于评估 | 20-101-1138, 20-101-1139 |
| 核心 | Rabbit 4000 |
| 接口类型 | Ethernet |
| 工作电源电压 | 3.3 V |
| 描述/功能 | Includes an RCM4300 core module with a miniSD card, a prototyping board, accessories, and development tools to get you up and running quickly |
| 类型 | MPU Module |
| 配用/相关产品 | RCM4300 |
| 内容 | RabbitCore Module, Dev. Board, AC Adapter, Cable and Dynamic C® CD-Rom |
| 标准包装 | 1 |
| RoHS指令 | Lead free / RoHS Compliant |
| 核心处理器 | Rabbit 4000 |
| 外形尺寸 | 47 x 72 x 21mm |
| 身高 | 21mm |
| 包括产品特点 | Analogue to Digital Converter, Input Capture, Pulse Width Modulator, Quadrature Decoder, Real Time Clock, Slave Interface, Timers, Watchdog/Supervisor |
| 套件包括 | Backup Battery, Core Module, Remote Program Update |
| 套件类型 | Mass Storage |
| 长度 | 72mm |
| 最高工作温度 | +85°C |
| 最低工作温度 | -20°C |
| 处理器时钟频率 | 58.98MHz |
| 支持总线接口 | IrDA, SDLC, SPI |
| 支持的I / O接口 | GPIO, Parallel |
| 支持网络接口 | 10/100 Base-T, RJ45 |
| 宽度 | 47mm |
| Silicon Manufacturer | :Rabbit Semiconductor |
| 核心架构 | :RCM4300 |
| Core Sub-Architecture | :RCM4300 |
| Silicon Core Number | :AT58206-UL1T |
| Silicon Family Name | :RabbitCore |
| 套件包含 | :Board |
| 产品特点 | :10/100 Base-T Ethernet, 8 Channel 12-bit Resolution |
| Development Tool Type | :Development Kit |
| Kit Contents Descriptive | :RCM4300 Module with miniSD card, Prototyping board, accessories and development tools |
| Kit Features | :Rabbit 4000 Microprocessor, CMOS-compatible Serial Ports, 2MB Flash, 1MB SRAM, 512K Data SRAM |
| MCU Supported Families | :RabbitCore |
| 插头类型 | :Euro, UK, US |
| Supported Devices | :RCM4300, RCM4310 |
| Weight (kg) | 0.75 |
| Tariff No. | 84733080 |
