power integrations

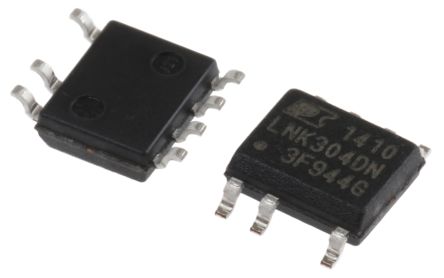

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 7SOIC-C |
| 工作温度 | -40 to 150 °C |
| 标准包装 | Rail / Tube |
| 产品种类 | AC/DC Switching Converters |
| RoHS | RoHS Compliant |
| 输出电压 | 12 V |
| 输入/电源电压（最大值） | 265 VAC |
| 输入/电源电压（最小值） | 85 VAC |
| 开关频率 | 66 kHz |
| 电源电流 | 200 uA |
| 工作温度范围 | - 40 C to + 150 C |
| 安装风格 | SMD/SMT |
| 封装/外壳 | SO-8C |
| 封装 | Tube |
| 输出数 | 1 |
| 输出电流 | 170 mA |
| 系列 | LNK304 |
| 类型 | Off Line Switcher |
| 频率范围 | 62kHz ~ 70kHz |
| 供应商设备封装 | SO-8C |
| 输出隔离 | Non-Isolated |
| 电压 - 击穿 | 700V |
| 功率（瓦特） | 12mW |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 4.9 x 3.9 x 1.65mm |
| 身高 | 1.65mm |
| 长度 | 4.9mm |
| 最高工作温度 | +150 °C |
| 最低工作温度 | -40 °C |
| 安装类型 | Surface Mount |
| 包装类型 | SOIC, SOIC-8C |
| 引脚数 | 7 |
| 额定功率 | 0.08W |
| 电源开关类型 | Off Line Switcher |
| 宽度 | 3.9mm |
| 输入/电源电压 - 最小 | 85 VAC |
| 占空比 - 最大 | 72 % |
| 输入/电源电压 - 最大 | 265 VAC |
| No. of Outputs | :1 |
| Voltage Regulator Case Style | :SOIC |
| No. of Pins | :8 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Drain Current | :25mA |
| 频率 | :66kHz |
| IC Generic Number | :304 |
| Input Voltage Max | :265VAC |
| Logic Function Number | :304 |
| On Resistance Rds(on) | :24ohm |
| Peak Drain Current | :750mA |
| 电源类型 | :Off-Line Switcher |
| Supply Voltage Min | :50V |
| 端接类型 | :SMD |
| Voltage Drain Peak Min | :-0.3V |
| Weight (kg) | 0.001 |
| Tariff No. | 85235290 |
| 案例 | SO8 |
| 输出电流 | 120mA |
| 安装 | SMD |
| Integrated circuit type | driver |
| Gross weight | 0.18 g |
| 输出电压 | 85...265V |
| Number of channels | 1 |
| Multiplicity | 1 |
| Kind of integrated circuit | switch |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
