Souriau Connection Technology

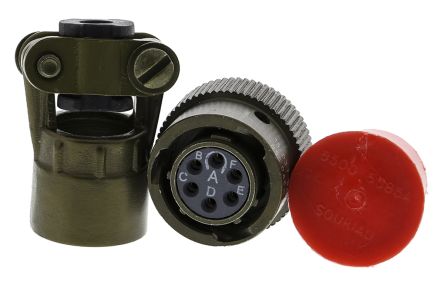

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 定位 | N (Normal) |
| 安装类型 | Free Hanging (In-Line) |
| 端子 | Solder |
| 外壳尺寸 - 插件 | 10-6 |
| 连接器类型 | Plug, Female Sockets |
| 外壳材料，表面处理 | Olive Drab Cadmium Plated |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 工作温度 | -55°C ~ 125°C |
| 紧固型 | Bayonet Lock |
| 标准包装 | 1 |
| 额定电流 | 7.5A |
| 位置数 | 6 |
| 产品特点 | Cable Clamp |
| 其他名称 | S85106EC106S50 |
| RoHS指令 | Contains lead / RoHS non-compliant |
| 身体上的取向 | Straight |
| 联系人性别 | Female |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold |
| 性别 | Male |
| 最高工作温度 | +125°C |
| 军用标准 | MIL-DTL-26482 |
| 最低工作温度 | -55°C |
| 触点数 | 6 |
| 外壳电镀 | Olive Drab Cadmium |
| 外壳尺寸 | 10 |
| 端接方式 | Solder |
| 系列 | :- |
| Connector Body Material | :Aluminium |
| Connector Mounting | :Cable |
| Connector Shell Size | :10 |
| 插入安排 | :10-6 |
| No. of Contacts | :6 |
| 接触端子 | :Solder |
| Connector Insert Type | :10-6 |
| 接触电阻 | :5ohm |
| 绝缘电阻 | :5000ohm |
| Male Contact Material | :Copper Alloy |
| Male Contact Plating | :pre tininng or gold |
| No. of Mating Cycles | :500 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Weight (kg) | 0.026 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
