Pomona Electronics

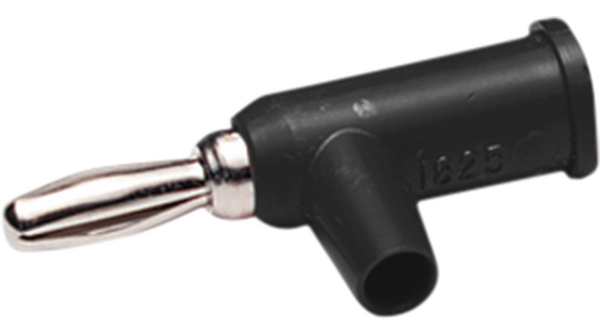

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线径规格 | 18-22 |
| 产品长度 | 39.36 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 50 |
| 触点数 | 1 |
| 安装 | Cable Mount |
| 身体上的取向 | Straight |
| 端接方式 | Screw |
| 产品高度 | 11.18 |
| 外壳材料 | Acrylonitrile Butadiene Styrene |
| 端口数 | 1 |
| 外壳颜色 | Black |
| 触点电镀 | Nickel |
| 性别 | PL |
| 最大额定电流 | 15 |
| 类型 | Banana |
| 触点材料 | Beryllium Copper |
| 插头/配接插头直径 | Standard |
| 安装类型 | Free Hanging (In-Line) |
| 颜色 | Black |
| 产品特点 | Set Screw, Safety Collar |
| 阀体材质 | Polypropylene (PP) |
| 触点表面涂层 | Nickel |
| 封装 | 10 per Bag |
| 线规 | 18-22 AWG |
| 工作温度 | 50°C |
| 标准包装 | 1 |
| 绝缘 | Non-Mating End Insulated |
| 端子 | Solderless |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 500 |
| 产品种类 | Test Plugs & Test Jacks |
| 额定电流 | 15 A |
| 额定电压 | 5 kV |
| 长度 | 1.55 in |
| 设备类型 | Banana Plugs |
| 绝缘材料 | Polypropylene |
| 零件号别名 | 1937271 |
| RoHS | RoHS Compliant |
| 系列 | :- |
| 接触端子 | :Screw |
| 连接器颜色 | :Black |
| Connector Mounting | :Cable |
| Weight (kg) | 0.064 |
| Tariff No. | 85369010 |
| Brand/Series | 1825Series |
| ContactPlating | Nickel |
| Current,Rating | 15A |
| Diameter,MountingHole | 0.12" |
| Diameter,Terminal | 0.166in. |
| 身高 | 1.55in. |
| InsulationMaterial | ABS(Model4899PolyphenyleneSulfide) |
| InsulationType | Insulated |
| Length,Terminal | 0.55in. |
| Material,Body | Brass |
| Material,Contact | BerylliumCopper |
| Material,Spring | BerylliumCopper |
| MountingType | Panel |
| PrimaryType | Banana |
| Temperature,Operating,Maximum | +122°F |
| Voltage,Rating | 5000V(HandFree),33V/70VDC(HandHeld) |
| 宽度 | 0.44in. |
| Wire,AWG | 22-18 |
| 连接器 | plug |
| Max cable section | 0.8mm2 |
| 额定电流 | 15A |
| Multiplicity | 1 |
| Pcs quantity in set | 10 |
| Connector type | 4mm banana |
| Gross weight | 0.07 kg |
| 额定电压 | 70V DC |
| 颜色 | black |
