Phoenix Contact

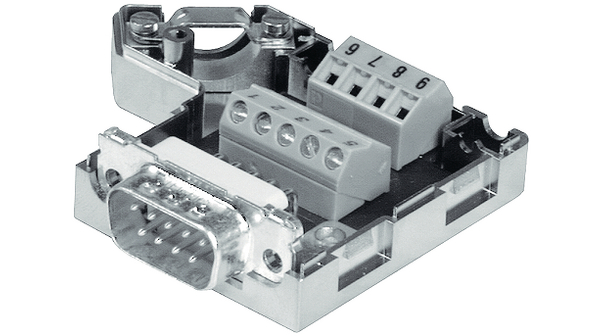

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 额定电流 | 100mA |
| 深度 | 55mm |
| 外形尺寸 | 56.4 x 16 x 55mm |
| 性别 | Male |
| 外壳材料 | ABS |
| 长度 | 56.4mm |
| 最高工作温度 | +75°C |
| 最低工作温度 | -20°C |
| 安装类型 | PCB Mount |
| 触点数 | 9 |
| 系列 | SH |
| 额定电压 | 50 V |
| 宽度 | 16mm |
| 产品范围 | :PHOENIX CONTACT - Wireable D Series |
| No. of Contacts | :9 |
| D Sub Shell Size | :DE |
| Connector Body Material | :Metal |
| 接触端子 | :Screw |
| No. of Mating Cycles | :50 |
| SVHC | :No SVHC (20-Jun-2013) |
| Cable Diameter Max | :10mm |
| Cable Diameter Min | :4mm |
| 外壳材料 | :ABS-VO, metal-plated |
| DC Current Max | :1A |
| 材质 | :ABS |
| Operating Temperature Max | :75°C |
| Operating Temperature Min | :-20°C |
| 端接方式 | :Screw |
| Voltage Rating V AC | :60V |
| Wire Size AWG Max | :16AWG |
| Wire Size AWG Min | :26AWG |
| 工作电压 | :60V |
| Weight (kg) | 0.0052 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
