3037368
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks ST 4 TWIN YE Conn Feed-Through Modular Terminal Blocks F 30A CONN TERM BLOCK Feed-through modular terminal block ST 4-TWIN YE ST4-TWINYE |
| 分类 | |
| 数据手册 | 3037368 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 商标名 | CLIPLINE ST |
| 其他名称 | ST 4-TWIN YE | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 800V |
| 额定电压 | 600 V | 最大额定电流 | 30 A |
| 最小输入电压 | 600V | ||
机械参数
| 颜色 | Yellow | 深度 | 6.2 |
| 重量 | 0.396479 oz | 导线线规 | 20 |
| 安装样式 | DIN Rail | 排数 | 3 |
| 剥线长度（范围） | 10mm | 端子宽度 | 6.2mm |
| 端接样式 | Push In, Spring | 位数 | 3 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 20-10 |
| 线规或范围 - mm² | 10 | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | ST | 层数 | 1 |
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0828746
Phoenix Contact
Wire Identification UCT-TMF 6 TERM BLOCK MARKER 6.2MM WHITE Labels Marker Label Polycarbonate White 5.6x5mm Markerforterminalblocks-UCT-TMF6
3039900
Phoenix Contact
Terminal Block Tools & Accessories ST-IL Operating Decal For The St Terminal Block DECAL FOR ST TERM BLOCK Mounting material ST-IL Operating decal for the ST terminal block ST-IL
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH

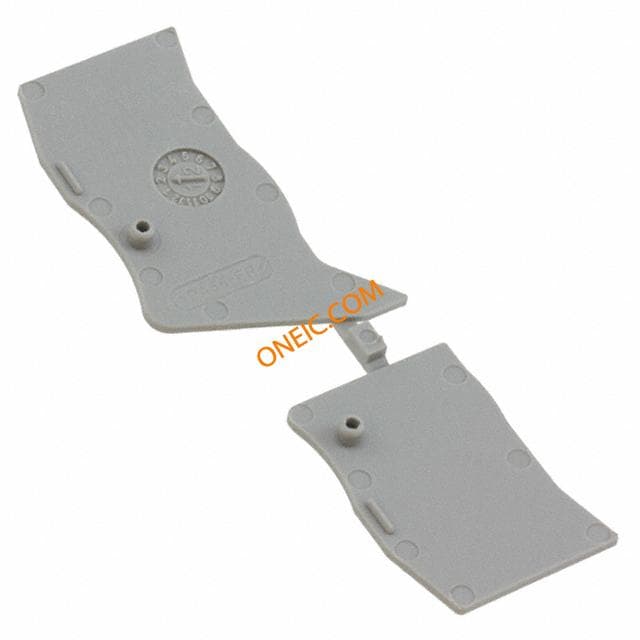

3036615
Phoenix Contact
Terminal Block Tools & Accessories DS-ST-4 End Cover Segment, For Covering Multi-Conductor Terminal Blocks When Two-Conductor Terminal Blocks Are Aligned, Color Gray COVER SEGMENT 87 X 36.5MM GRAY Cover segment, Length: 87 mm, Height: 36.5 mm, Color: gray Coversegment,Length:Â 87mm,Height:Â 36.5mm,Color:Â gray
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug
0808710
Phoenix Contact
Terminal Block Tools & Accessories ZBF 6: UNBEDRUCKT MARKER STRIP 10 SECT Zack Strip, Flat, Unprinted 10-Section, For Individual Labeling With M-Pen Or Zbf-T, Sufficient For 100 Terminal Blocks, Color White 10 SECTION ZACK MARKER STRIP Phoenix Contact 0808710 Marker Strip Terminal Block, Series: ZBF ZACKSTRIP,FLAT,UNPRINTED Phoenix Contact ZBF 系列 标记条
3030365
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-6 20 P0S BRIDGE Conn Jumper PL 20 POS ST BRIDGE TERM BLOCK 20POS Cross connector/jumper for modular terminal block FBS 20-6 Bridge;Plug-InBridge;20;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 20-6 系列 20 极跳片

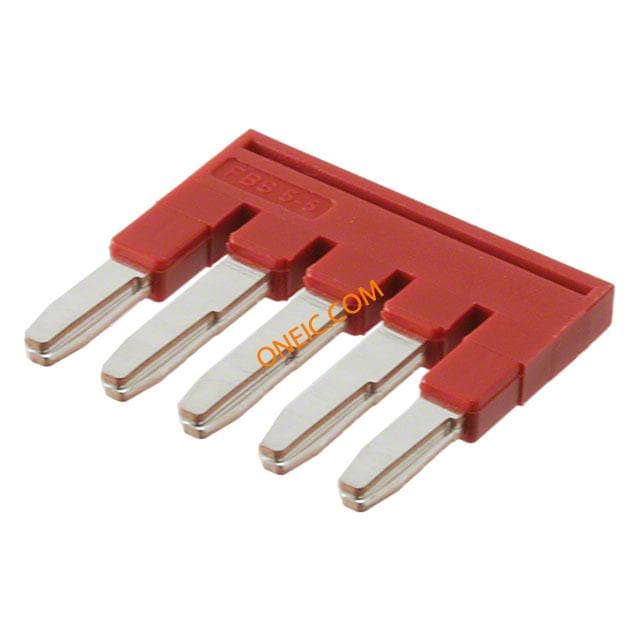

3030349
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-6 5 POS BRIDGE Connector Accessories Plug-in Bridge For Cross-Connections In The Terminal Center BRIDGE TERM BLOCK 5POS Phoenix Contact 3030349 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 5-6 Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 5 极跳片
3030336
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-6 2P PLUG-IN BRIDGE Conn Jumper PL 2 POS ST BRIDGE TERM BLOCK 2POS Phoenix Contact 3030336 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. FBS 2-6

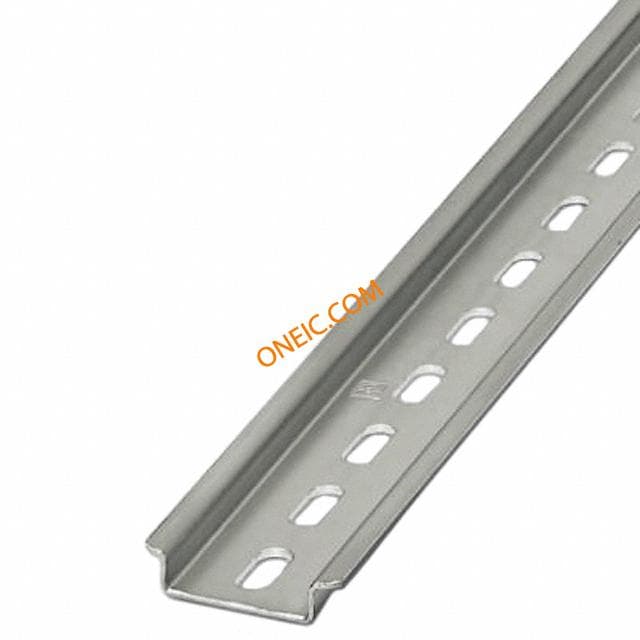

1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength

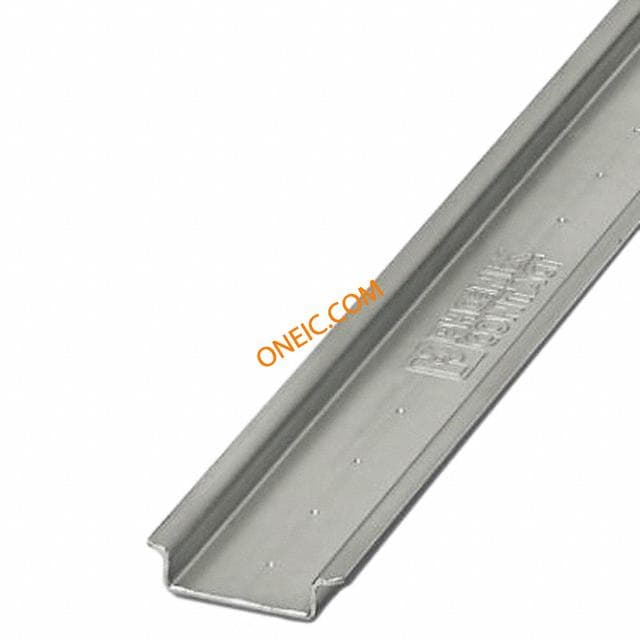

1206434
Phoenix Contact
Mounting Hardware NS 35/ 7,5 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM UNSLOT 2M NS35/75ZNUNPERF2000MM

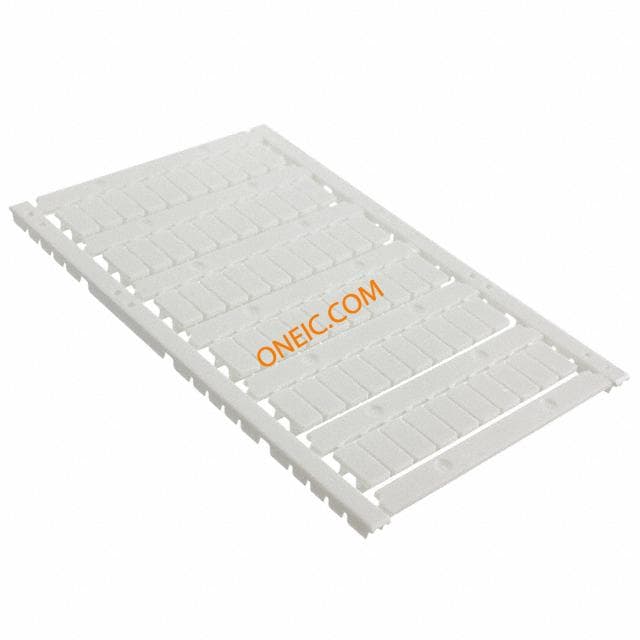

0828736
