所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|

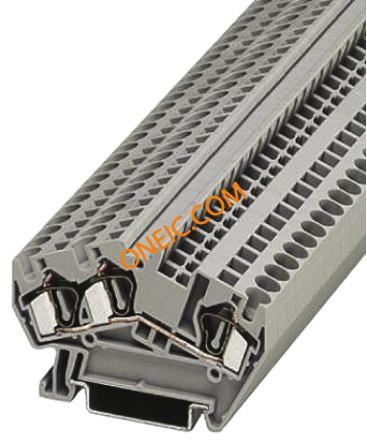

| Product Category | DIN Rail Terminal Blocks |
| RoHS | RoHS Compliant |
| Product | DIN Rail Terminal Blocks |
| Factory Pack Quantity | 50 |
| Wire Size | 10-28 |
| EU RoHS | Compliant |
| Product Depth | 6.2 |
| Gender | F |
| Maximum Current Rating | 30 |
| Number of Rows | 3 |
| Maximum Voltage Rating | 600V |
| Type | Feed-Through Modular Terminal Blocks |
| Number of Levels | 1 |
| Wire Gauge or Range - mm² | 0.08-6mm² |
| Color | Gray |
| Stripping Length | 10mm |
| Standard Package | 50 |
| Termination Style | Push In, Spring |
| Wire Gauge or Range - AWG | 10-28 AWG |
| Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon |
| Current - IEC | 32A |
| Voltage - IEC | 800V |
| Current - UL | 30A |
| Voltage - UL | 600V |
| Material Flammability Rating | UL94 V-0 |
| Terminal - Width | 6.2mm |
| rohs | Lead free / RoHS Compliant |
| Colour | Grey |
| Current Rating | 38A |
| Series | STS |
| Termination Method | Spring Cage |
| Voltage Rating | 800 V |
| Wire Size | 28 → 10 AWG |
| Unit Weight | 0.379548 oz |
| Tradename | CLIPLINE ST |
| 颜色 | 灰色 |
| 层数目 | 单层 |
| 端接方法 | 弹簧笼 |
| 额定电流 | 38A |
| 线规格 | 28 → 10 AWG |
| 额定电压 | 800 V |
| 系列 | STS |
