Phoenix Contact

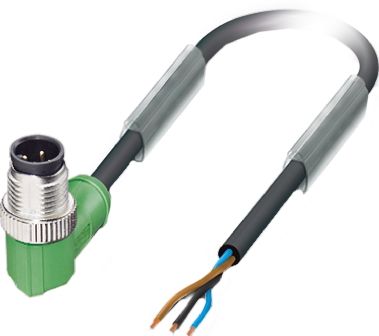

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Cable Assemblies |
| RoHS | In Transition |
| 产品 | I/O Assemblies |
| 类型 | Sensor/Actuator Cable |
| 连接器A端 | M12 |
| 连接器A端针脚数 | 3 |
| 连接器B端 | No Connector |
| 连接器B端针脚数 | 0 |
| 性别 | Male |
| 长度 | 3 m |
| 颜色 | Black, Gray |
| 工厂包装数量 | 1 |
| 额定电压 | 320 V |
| 线径规格 | 22 |
| 欧盟RoHS指令 | Compliant |
| 最大额定电压 | 250V |
| 连接A型 | 3POS Circular |
| 电缆类型 | Sensor/Actuator |
| 连接器类型 | 3POS Circular |
| Maximum Current Rating | 4 |
| 触点电镀 | Gold Over Nickel |
| 连接器B型 | Not Included |
| 电缆长度 | 3 |
| 触点材料 | Brass |
| 系列 | * |
| 其他名称 | SAC-3P-M12MR/3 0-PUR |
| 标准包装 | 1 |
| RoHS指令 | Lead free / RoHS Compliant |
| 附件类型 | Sensor/Actuator Cable |
| 电缆长度 | 3m |
| 连接性别 | Male |
| 连接类型 | M12 |
| 适用于 | Sensor/Actuators |
| 单位重量 | 3.527396 oz |
| 商品名 | PLUSCON Field |
| 应用 | Forsensor/actuator |
| Brand/Series | SAC |
| Cableend1,ConnectorAngle | RightAngle |
| Cableend1,ConnectorType | M12Plug |
| Cableend2,ConnectorType | StrippedEnd |
| CableType | Twisted |
| Color,Jacket | Black-Gray |
| ConnectorType | M12 |
| Current,Rating | 4A |
| Length,Cable | 3m |
| Material,Conductor | BareCopper |
| Material,Insulation | ThermoplasticUrethane |
| Material,Jacket | PUR |
| NumberofConductors | 3Conductors |
| NumberofPositions | 3 |
| PhoenixPartNumber | SAC-3P-M12MR/3,0-PUR |
| PrimaryType | Cable |
| Resistance,Contact | 5Milliohms(Max.) |
| Size,Conductor | 22AWG |
| SpecialFeatures | Halogen-Free |
| 标准 | UL,cULus |
| 搁浅 | 42×0.1mm |
| Temperature,Rating | -25to+90°C(Plug/Socket),-40to+80°C(Fixed),-5to+80°C(Flexible) |
| Voltage,Rating | 320V |
| 附件类型 | Sensor/Actuator Cable |
| 连接性别 | 公 |
| 使用于 | Sensor/Actuators |
| 连接类型 | M12 |
| 电缆长度 | 3m |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
