Alpha Wire

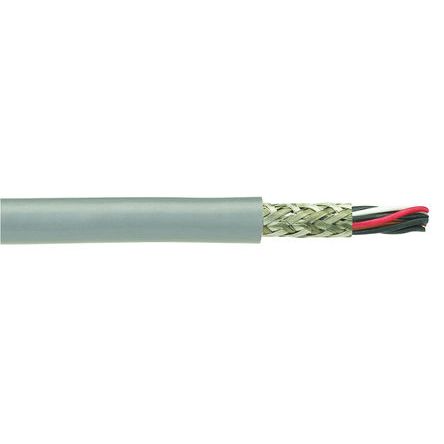

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Multi-Conductor Cables |
| RoHS | RoHS Compliant |
| 导线数 | 4 |
| 线规 - AWG | 22 |
| 搁浅 | 19 x 34 |
| 屏蔽 | Shielded |
| 长度 | 100 ft |
| 额定电压 | 300 V |
| 护套材质 | Polyvinyl Chloride (PVC), Oil Resistant |
| 产品特点 | Connecting Sensors and Actuators to Controllers |
| 外套颜色 | Gray |
| 外直径6mm | 5.84 mm |
| 封装 | Spool |
| 系列 | 8630 |
| 屏蔽覆盖范围 | 100%, 90% |
| 评分 | UL Style 2661 |
| 套管直径 | 0.231" (5.87mm) |
| 标准包装 | 1 |
| 线规 | 22 AWG |
| 屏蔽材料 | Aluminum; Copper, Tinned |
| 屏蔽类型 | Foil, Braid |
| 电缆类型 | Multi-Conductor |
| 导体绞合线 | 19/34 |
| 导体材料 | Copper, Tinned |
| 护套材料 | Poly-Vinyl Chloride (PVC) |
| 颜色 | Slate |
| 绝缘 | Poly-Vinyl Chloride (PVC) |
| 工作温度 | -10°C ~ 105°C |
| 护套厚度 | 0.040" (1.02mm) |
| 电压 | 300V |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 4 lbs |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| No. of Conductors | :4 |
| Conductor Size AWG | :22AWG |
| No. of Max Strands x Strand Size | :19 x 0.16mm |
| Conductor Area CSA | :0.38mm² |
| Jacket Colour | :Grey |
| External Diameter | :5.7mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Bend Flexing Radius Min | :8 X Cable Diameter |
| Conductor Make-up | :19 / 0.16mm |
| No. of Cores | :4 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :5°C |
| 外径 | :5.7mm |
| Primary Insulation Thickness | :0.25mm |
| Secondary Insulation Colour | :Grey |
| Secondary Insulation Material | :PVC |
| Secondary Insulation Thickness | :1mm |
| Voltage Rating V AC | :300V |
| 线径规格 | :22AWG |
| Weight (kg) | 1.8 |
| Tariff No. | 85444995 |
