Alpha Wire

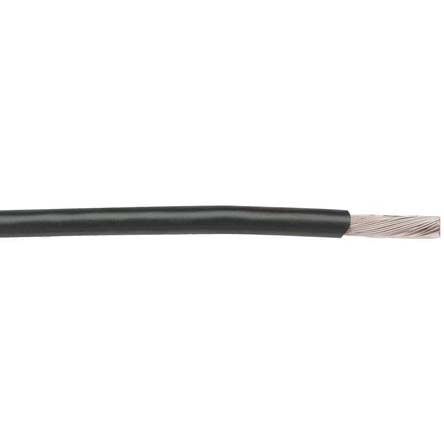

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Hook-up Wire |
| RoHS | RoHS Compliant |
| 搁浅 | 19 x 36 |
| 额定电压 | 300 V |
| 长度 | 100 ft |
| 线规 - AWG | 24 |
| 绝缘材料 | Polytetrafluoroethylene (PTFE) |
| 最高温度 | + 200 C |
| 类型 | MIL-DTL-16878/5 (Type EE) |
| 外套颜色 | Black |
| 系列 | 5874 |
| 产品特点 | Outstanding electrical properties |
| 外直径6mm | 1.32 mm |
| 封装 | Spool |
| 导线类型 | Hook-Up/Lead Wire |
| 评分 | UL Style 1180 |
| 护套厚度 | 0.014" (0.35mm) |
| 套管直径 | 0.054" (1.37mm) |
| 线规 | 24 AWG |
| 电缆类型 | Hook Up |
| 导体绞合线 | 19/36 |
| 导体材料 | Copper, Silver Coated |
| 护套材料 | Polytetrafluoroethylene (PTFE) |
| 电压 | 1000V |
| 标准包装 | 1 |
| 工作温度 | -60°C ~ 200°C |
| 其他名称 | 5874BK005 |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 8.000001 oz |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| Conductor Size AWG | :24AWG |
| Conductor Area CSA | :0.242mm² |
| Jacket Colour | :Black |
| 护套材质 | :PTFE (Polytetrafluoroethylene) |
| External Diameter | :1.32mm |
| No. of Max Strands x Strand Size | :19 x 0.127mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Conductor Make-up | :19 / 36AWG |
| 外径 | :1.32mm |
| 线径规格 | :24AWG |
| Weight (kg) | 1 |
| Tariff No. | 85444995 |
