Alpha Wire

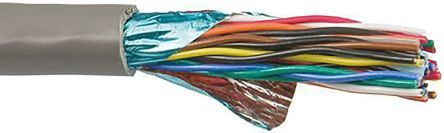

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Multi-Paired Cables |
| RoHS | RoHS Compliant |
| 线规 - AWG | 24 |
| 对数 | 10 |
| 搁浅 | 7 x 32 |
| 屏蔽 | Shielded |
| 长度 | 100 ft |
| 额定电压 | 300 V |
| 护套材质 | Polyvinyl Chloride (PVC) |
| 绝缘材料 | Polyvinyl Chloride (PVC) |
| 类型 | Xtra-Guard 1 |
| 外套颜色 | Gray (Slate) |
| 导体材料 | Tinned Copper |
| 产品特点 | Suitable for EIA RS-232, medical electonics, peripherals, industrial process control and high technology applications |
| 外直径6mm | 9.65 mm |
| 封装 | Spool |
| 系列 | 5480 |
| 屏蔽覆盖范围 | 100% |
| 评分 | UL Style 2464 |
| 套管直径 | 0.373" (9.47mm) |
| 标准包装 | 1 |
| 线规 | 24 AWG |
| 屏蔽材料 | Aluminum |
| 屏蔽类型 | Foil |
| 电缆类型 | Multi-Pair |
| 导线数 | 20 (10 Pair Twisted) |
| 导体绞合线 | 7/32 |
| 护套材料 | Poly-Vinyl Chloride (PVC) |
| 颜色 | Slate |
| 绝缘 | Poly-Vinyl Chloride (PVC) |
| 工作温度 | -20°C ~ 80°C |
| 护套厚度 | 0.040" (1.02mm) |
| 电压 | 300V |
| RoHS指令 | Lead free / RoHS Compliant |
| 美国线规 | 24 |
| 电缆形状 | Twisted Pair |
| 特性阻抗 | 82 Ω |
| 核心股 | 7/0.20 mm |
| 截面积 | 0.23 mm |
| 股数 | 7 |
| 外径 | 9.47mm |
| 外护套材料 | PVC |
| 卷长 | 30m |
| 护套颜色 | Grey |
| 股尺寸 | 0.2 mm |
| 单位重量 | 8 lbs |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| 局域网类型 | :- |
| No. of Pairs | :10 |
| Conductor Size AWG | :24AWG |
| Jacket Colour | :Grey |
| No. of Max Strands x Strand Size | :7 x 0.2mm |
| External Diameter | :9.6mm |
| Conductor Area CSA | :0.2mm² |
| SVHC | :No SVHC (20-Jun-2013) |
| Alpha Type Number | :5480C |
| Approval Bodies | :UL |
| Belden Type Number | :9510 EQUIVALENT |
| Cable UL Style Number | :UL2464 |
| Complex Cable Make-Up | :20 x 7/0.2 |
| Conductor Make-up | :7 / 0.2mm |
| Drain Wire Type | :24AWG stranded tinned copper |
| MSL | :- |
| No. of Conductors | :20 |
| No. of Cores | :20 |
| Operating Temperature Max | :75°C |
| Operating Temperature Min | :-20°C |
| Screen Type Primary | :Aluminum/polyester tape |
| Secondary Insulation Colour | :Grey |
| Secondary Insulation Material | :PVC |
| Secondary Insulation Thickness | :1.02mm |
| Voltage Rating V AC | :300V |
| 线径规格 | :24AWG |
| Weight (kg) | 1 |
| Tariff No. | 85444995 |
