Alpha Wire

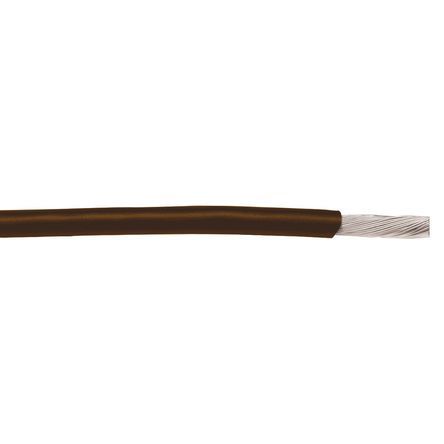

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Hook-up Wire |
| RoHS | RoHS Compliant |
| 搁浅 | 65 x 30 |
| 额定电压 | 600 V |
| 长度 | 100 ft |
| 线规 - AWG | 12 |
| 绝缘材料 | Polyvinyl Chloride (PVC) |
| 最高温度 | + 105 C |
| 类型 | Multiple UL AWM Styles |
| 外套颜色 | Brown |
| 系列 | 3080 |
| 外直径6mm | 3.99 mm |
| 封装 | Spool |
| 导线类型 | Hook-Up/Lead Wire |
| 评分 | UL Style 1015/1230 |
| 护套厚度 | 0.032" (0.81mm) |
| 套管直径 | 0.157" (3.99mm) |
| 线规 | 12 AWG |
| 电缆类型 | Hook Up |
| 导体绞合线 | 65/30 |
| 导体材料 | Copper, Tinned |
| 护套材料 | Poly-Vinyl Chloride (PVC) |
| 电压 | 600V |
| 标准包装 | 1 |
| 工作温度 | -40°C ~ 105°C |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 3.200 lbs |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| Conductor Size AWG | :12AWG |
| Conductor Area CSA | :3.315mm² |
| Jacket Colour | :Brown |
| 护套材质 | :PVC (Polyvinyl Chloride) |
| External Diameter | :3.93mm |
| No. of Max Strands x Strand Size | :65 x 0.255mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Conductor Make-up | :65 / 30AWG |
| 外径 | :3.93mm |
| 线径规格 | :12AWG |
| Weight (kg) | 1 |
| Tariff No. | 85444995 |
