Alpha Wire

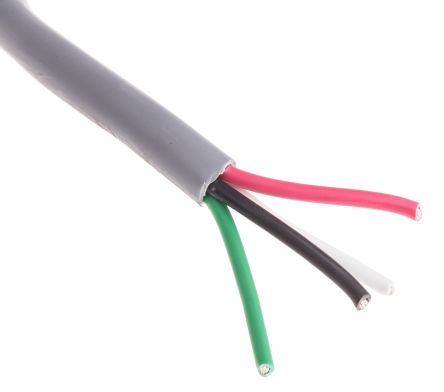

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Multi-Conductor Cables |
| RoHS | RoHS Compliant |
| 导线数 | 4 |
| 线规 - AWG | 20 |
| 搁浅 | 7 x 28 |
| 屏蔽 | Unshielded |
| 长度 | 100 ft |
| 额定电压 | 300 V |
| 护套材质 | Low Smoke Zero Halogen (LSZH) |
| 绝缘材料 | Low Smoke Zero Halogen (LSZH) |
| 类型 | Communication and Control |
| 导体材料 | Copper |
| 外套颜色 | Slate |
| 外直径6mm | 0.219 in |
| 封装 | Spool |
| 套管直径 | 0.209" (5.31mm) |
| 标准包装 | 1 |
| 线规 | 20 AWG |
| 电缆类型 | Multi-Conductor |
| 导体绞合线 | 7/28 |
| 护套材料 | Low Smoke Zero Halogen (LSZH) |
| 颜色 | Slate |
| 绝缘 | Low Smoke Zero Halogen (LSZH) |
| 用法 | Communication, Control |
| 工作温度 | -20°C ~ 75°C |
| 护套厚度 | 0.020" (0.51mm) |
| 电压 | 300V |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 2.840 lbs |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| No. of Conductors | :4 |
| Conductor Size AWG | :20AWG |
| No. of Max Strands x Strand Size | :7 x 0.32mm |
| Conductor Area CSA | :0.51mm² |
| Jacket Colour | :Slate |
| External Diameter | :5.31mm |
| Conductor Make-up | :7 / 28 |
| No. of Cores | :4 |
| Operating Temperature Max | :75°C |
| Operating Temperature Min | :-20°C |
| 外径 | :5.31mm |
| 线径规格 | :20AWG |
| Weight (kg) | 1.3 |
| Tariff No. | 85444995 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
