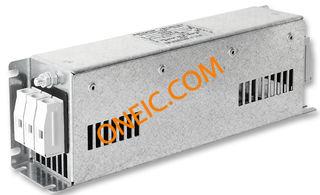

图片仅供参考,产品以实物为准
| 规格书 |
 |
| 文档 |
FMBC, FMAC 16/Sept/2011 |
| Rohs | Lead free / RoHS Compliant |
| 产品更改通知 | Ventilation Slots Change 16/Sept/2011 |
| 标准包装 | 3 |
| Filter 型 | Power Line |
| 电压 - 额定 | 480V |
| 当前 | 16A |
| 电感 | 550µH |
| 安装类型 | Chassis Mount |
| 终止风格 | Binding Post |
| 单位包 | 3 |
| 最小起订量 | 3 |
| 子类别 | Power Line Filter |
| 交货期 | 63 Days |
| 电压 - 额定交流 | 480V |
| 安装类型 | Chassis |
| 认证 | ENEC |
| 端接类型 | Terminal Block |
| 电流 | 16A |
| 应用范围 | Inverters, Power Drive Systems |
| 工作温度 | -25°C ~ 100°C |
| 标准包装 | 3 |
| 滤波器类型 | Three Phase (Delta) |
| 配置 | Single Stage |
| 其他名称 | 486-1515 |
| 频率 - 工作温度 | 50 ~ 60Hz |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 250mm |
| 外形尺寸 | 45.5 x 250 x 70mm |
| 身高 | 70mm |
| 长度 | 45.5mm |
| 最大额定电流 | 16A |
| 最高工作温度 | +100°C |
| 最大额定电压 | 480 V ac |
| 最低工作温度 | -25°C |
| 工作频率 | 60Hz |
| 系列 | FMAC ECO |
| 单位重量 | 2.006 lbs |
| 额定电流 | :16A |
| 额定电压 | :480VAC |
| Leakage Current Max | :96mA |
| Inductance Min | :550µH |
| Filter Terminals | :Terminal Block |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.91 |
| Tariff No. | 85363010 |
| Brand/Series | FMACECOSeries |
| Current,Leakage | 33mA |
| Current,Rating | 16A |
| FilterType | RFILine |
| Frequency,Operating | 50/60Hz |
| HipotRating,LinetoGround | 3000VDC |
| HipotRating,LinetoLine | 2250VDC |
| 电感 | 0.55mH |
| IPRating | IP20 |
| MountingType | Chassis |
| 第一阶段 | 3 |
| PrimaryType | 1-Stage |
| 类型 | Filter |
| Voltage,Operating | 480VAC |
| Voltage,Rating | 480VAC |
| WireSize | 4sq.mm |
| Leads | screw terminals |
| Filter kind | three-phase |
| Body dimensions | 199 x 46 x 70mm |
| Operating current max | 16A |
| Number of poles | 1 |
| Multiplicity | 1 |
| Gross weight | 0.5 kg |
| Operating temperature | -25...100°C |
| Operating voltage | 480V AC |
| 安装 | screwed |
| Filter type | anti-interference |
| Collective package [pcs] | 3 |
| spg | 3 |
