schurter

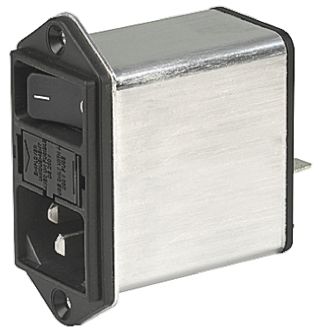

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Filtered |
| 触点数 | 3 |
| 最大额定电压 | 250 Vac |
| 端接方式 | Solder Lug |
| 安装 | Flange Mount |
| 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| 标准包装 | Bulk |
| 单位包 | 20 |
| 最小起订量 | 20 |
| 产品特点 | Fuse Holder, Shielded, Switch On/Off, Non-Illuminated |
| 安装类型 | Panel Mount, Screw Hole |
| 端接类型 | Quick Connect |
| 电流 | 2A |
| 保险丝盒 | Sold Separately |
| 电压 | 250VAC |
| 滤波器类型 | General Purpose |
| RoHS指令 | Lead free / RoHS Compliant |
| 额定电流 | 2A |
| 深度 | 60.9mm |
| 性别 | Male |
| 身高 | 31.5mm |
| IEC连接器类型 | C14 |
| 额定电压 | 250 V ac |
| 宽度 | 66mm |
| 工厂包装数量 | 20 |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 外壳材料 | Thermoplastic |
| 系列 | DD12 |
| 工作温度范围 | - 25 C to + 85 C |
| 单位重量 | 3 oz |
| 安装风格 | Panel, Screw |
| 开关功能 | Switched |
| 融合 | Yes |
| 过滤 | Yes |
| RoHS | RoHS Compliant |
| Leakage Current Max | :500µA |
| 电容 | :0.1µF |
| Inductance Min | :4mH |
| Filter Terminals | :Quick Connect |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.085 |
| Tariff No. | 85363090 |
| Capacitance,Cx | 100nF |
| Capacitance,Cy | 2.2nF |
| Current,Leakage | <0.5mA |
| Current,Rating | 2A |
| CutOut,Panel | 49.3×29.8mm |
| DielectricStrength | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) |
| FilterType | ACLine,IEC,Inlet |
| 电感 | 2×4mH |
| Material,Housing | Thermoplastic |
| MountMethod | Front |
| MountingType | Panel/Screw-On |
| NumberofPoles | 1(Fuseholder),2(LineSwitch) |
| 电阻 | 1Megohms |
| Temperature,Operating | -25to+85°C |
| 端子 | QuickConnect |
| Thickness,Panel | 8mm |
| 版本 | Standard |
| Voltage,Rating | 250VAC |
