schurter

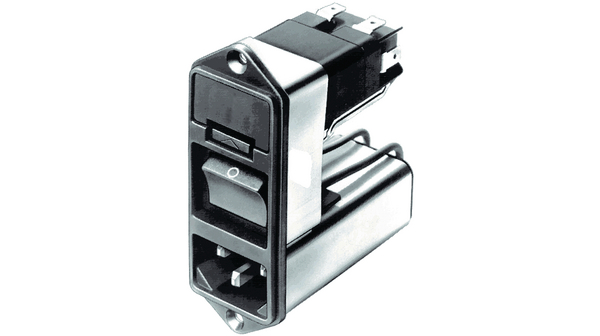

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Filtered |
| 触点数 | 3 |
| 最大额定电压 | 250 Vac |
| 端接方式 | Solder Lug |
| 安装 | Flange Mount |
| 连接器类型 | IEC/EN 60320-1/C14|UL 498|CSA C22.2 |
| 标准包装 | Bulk |
| 单位包 | 10 |
| 最小起订量 | 10 |
| 工业别名 | FKSP-55-0001 |
| 子类别 | Power Entry Module |
| 交货期 | 20 Days |
| 产品特点 | Fuse Holder, Switch On/Off Non-Illuminated |
| 安装类型 | Panel Mount, Screw Hole |
| 端接类型 | Quick Connect |
| 电流 | 1A |
| 保险丝盒 | Sold Separately |
| 电压 | 125/250VAC |
| 滤波器类型 | General Purpose |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 10 |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 额定电流 | 1 A |
| 外壳材料 | Thermoplastic |
| 额定电压 | 125 V / 250 V |
| 系列 | CD |
| 工作温度范围 | - 25 C to + 85 C |
| 单位重量 | 2.892465 oz |
| 安装风格 | Screw |
| 开关功能 | Switched |
| 可燃性等级 | UL 94 V-0 |
| 过滤 | Yes |
| 融合 | Yes |
| RoHS | RoHS Compliant |
| Leakage Current Max | :500µA |
| 电容 | :0.068µF |
| Inductance Min | :10mH |
| Filter Terminals | :Quick Connect |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.082 |
| Tariff No. | 85369010 |
| Capacitance,Cx | 68nF |
| Capacitance,Cy | 2.2nF |
| Current,Leakage | <0.5mA |
| Current,Rating | 1A |
| CutOut,Panel | 26.5×75.5mm |
| DielectricStrength | >1.7kVDC(L-N),>2.7kVDC(L/N-PE) |
| 外形尺寸 | 69mmLx28.5mmWx75.5mmH |
| FilterType | ACLine,IEC,Inlet |
| Frequency,Operating | 50to60Hz |
| 性别 | Male |
| 电感 | 2×10mH |
| Material,Housing | Thermoplastic |
| MountMethod | Front |
| MountingType | Panel/Screw-On |
| NumberofPoles | 2 |
| 标准 | ULRecognized,CSACertified,VDEApproved |
| Temperature,Operating | -25to+85°C |
| 端子 | QuickConnect |
| Thickness,Panel | 8mm |
| 版本 | Standard |
| Voltage,Rating | 125VAC(UL/CSA),250VAC(IEC)VAC |
