SCHURTER

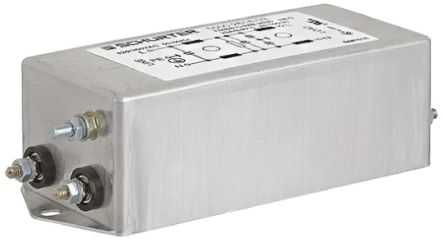

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 10 |
| 最小起订量 | 10 |
| 深度 | 46mm |
| 外形尺寸 | 77 x 46 x 31mm |
| 身高 | 31mm |
| 长度 | 77mm |
| 最大额定电流 | 1A |
| 最高工作温度 | +100°C |
| 最大额定电压 | 250 V ac |
| 最低工作温度 | -25°C |
| 安装类型 | Screw Mount |
| 工作频率 | 50 → 60Hz |
| 端接类型 | Tab |
| RoHS指令 | Compliant |
| 滤波器类型 | :Single Phase |
| 额定电流 | :1A |
| 额定电压 | :250VAC |
| Leakage Current Max | :500µA |
| Filter Terminals | :Quick Connect |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.125 |
| Tariff No. | 85363010 |
| Leads | 6.3x0.8mm connectors |
| Body dimensions | 46 x 52 x 31mm |
| Operating current max | 1A |
| Inductance of individual winding | 12mH |
| Multiplicity | 1 |
| Capacitance Cy | 4.7nF |
| Capacitance Cx | 220nF |
| 电阻 | 945mΩ |
| Gross weight | 0.4 kg |
| Operating temperature | -25...100°C |
| Number of poles | 2 |
| Operating voltage | 250V AC |
| Filter type | anti-interference |
| Collective package [pcs] | 10 |
| spg | 10 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
