schurter

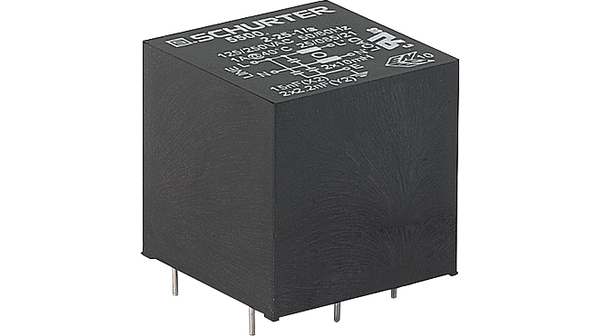

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 家庭 | FPP-01 |
| 最大额定电流 | 4 A |
| 最大额定电压 | 250 Vac |
| 工作频率 | 50|60 Hz |
| 端子 | PC Pins |
| 最低工作温度 | -25 °C |
| 最高工作温度 | 85 °C |
| 安装 | Through Hole |
| 标准包装 | Bulk |
| 单位包 | 50 |
| 最小起订量 | 50 |
| 工业别名 | FPP-25-0004 |
| 子类别 | Power Line Filter |
| 交货期 | 49 Days |
| 电压 - 额定交流 | 125V, 250V |
| 安装类型 | Through Hole |
| 认证 | cULus, ENEC, VDE |
| 端接类型 | PCB Pins |
| 电流 | 4A |
| 应用范围 | General Purpose |
| 工作温度 | -25°C ~ 85°C |
| 滤波器类型 | Single Phase |
| 配置 | Single Stage |
| 频率 - 工作温度 | 50 ~ 60Hz |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 50 |
| 产品种类 | AC Power Line Filters |
| 额定电流 | 4 A |
| 额定电压 | 125 VAC, 250 VAC |
| 系列 | FPP |
| 单位重量 | 1 oz |
| 安装风格 | PCB |
| 频率 | 50 Hz, 60 Hz |
| 泄漏电流 | 0.25 mA |
| RoHS | RoHS Compliant |
| Leakage Current Max | :0.25mA |
| 电容 | :0.015µF |
| Inductance Min | :1.5mH |
| Filter Terminals | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Capacitance Y | :2.2nF |
| 外部深度 | :25mm |
| External Length / Height | :25mm |
| 外宽 | :25mm |
| No. of Phases | :Single |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-25°C |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.027 |
| Tariff No. | 85322900 |
| Brand/Series | FPP-01Series |
| Current,Leakage | 0.25mA |
| Current,Rating | 4A |
| 外形尺寸 | 25mmH×25mmW×25mmL |
| FilterType | 1-Phase |
| Frequency,Operating | 50/60Hz |
| HipotRating,LinetoGround | 2700VDC |
| HipotRating,LinetoLine | 1700VDC |
| 电感 | 2x1.5mH |
| MountingType | Chassis |
| 第一阶段 | 1 |
| PrimaryType | 1-Stage,AC,GeneralPurpose |
| 类型 | Filter |
| Voltage,Operating | 125(UL/CSA),250(IEC)VAC |
| Voltage,Rating | 250VAC |
| Number of poles | 1 |
| Body dimensions | 25 x 25 x 25mm |
| Operating current max | 4A |
| Inductance of individual winding | 1.5mH |
| Multiplicity | 1 |
| Capacitance Cy | 2.2nF |
| Capacitance Cx | 15nF |
| Gross weight | 0.1 kg |
| Operating temperature | -25...85°C |
| Operating voltage | 250V AC |
| Filter type | anti-interference |
| Collective package [pcs] | 50 |
| spg | 50 |
