schurter

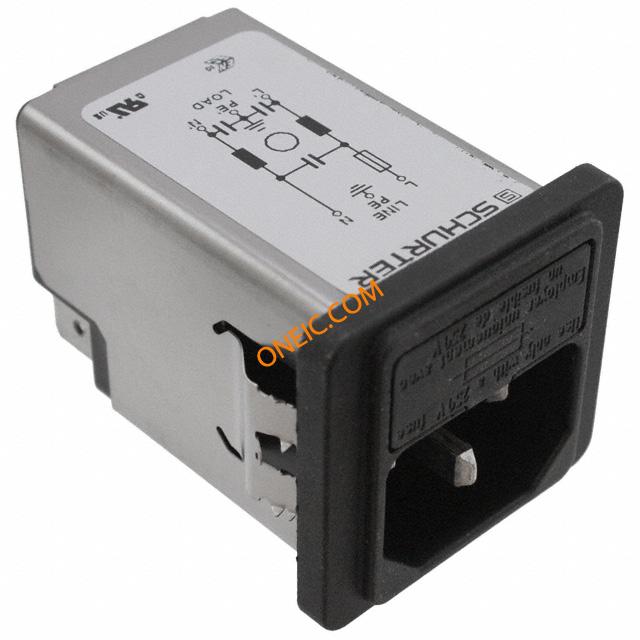

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Filtered |
| 触点数 | 3 |
| 最大额定电压 | 250 Vac |
| 安装 | Snap-In |
| 连接器类型 | IEC/EN 60320-1/C14 |
| 标准包装 | Bulk |
| 单位包 | 10 |
| 最小起订量 | 10 |
| 子类别 | Power Entry Module |
| 交货期 | 49 Days |
| 产品特点 | Fuse Holder |
| 安装类型 | Panel Mount, Snap-In |
| 端接类型 | Quick Connect |
| 电流 | 4A |
| 保险丝盒 | Included |
| 电压 | 125/250VAC |
| 滤波器类型 | General Purpose |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 10 |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 额定电流 | 4 A |
| 额定电压 | 125 V |
| 系列 | 5200 |
| 工作温度范围 | - 25 C to + 85 C |
| 单位重量 | 2.045890 oz |
| 安装风格 | Snap In |
| 开关功能 | Not Switched |
| 过滤 | Yes |
| 融合 | Yes |
| RoHS | RoHS Compliant |
| 性别 | :Plug |
| Connector Mounting | :Panel |
| 接触端子 | :Quick Connect |
| 阀体材质 | :Thermosplastic |
| Filter Terminals | :Quick Connect |
| Weight (kg) | 0.054 |
| Tariff No. | 85366910 |
| Electrical mounting | 6.3mm connectors |
| Mechanical mounting | for panel mounting, snap fastener |
| 额定电流 | 4A |
| Multiplicity | 10 |
| Fuse size | 5x20mm |
| Capacitance Cy | 2.2nF |
| Connector type | male |
| Capacitance Cx | 47nF |
| 连接器 | socket |
| Gross weight | 0.07 kg |
| Connector series | 5220 |
| 电感 | 1.6mH |
| 额定电压 | 250V AC |
| Collective package [pcs] | 6 |
| Schematic diagram | see |
| spg | 6 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
