schurter

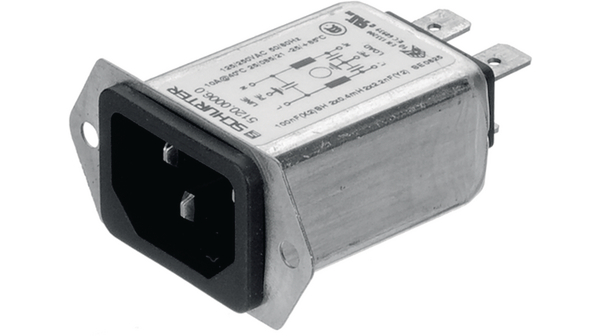

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Filtered |
| 触点数 | 3 |
| 最大额定电压 | 250 Vac |
| 端接方式 | Faston |
| 安装 | Flange Mount |
| 连接器类型 | IEC/EN 60320-1/C14 |
| 标准包装 | Bulk |
| 单位包 | 10 |
| 最小起订量 | 10 |
| 产品特点 | Shielded |
| 安装类型 | Panel Mount, Screw Hole |
| 端接类型 | Quick Connect |
| 电流 | 2A |
| 保险丝盒 | Fuse Not Required |
| 电压 | 250VAC |
| 滤波器类型 | General Purpose |
| RoHS指令 | Lead free / RoHS Compliant |
| 额定电流 | 2A |
| 深度 | 54.5mm |
| 性别 | Male |
| 身高 | 24.6mm |
| IEC连接器类型 | C14 |
| 额定电压 | 250 V ac |
| 宽度 | 48.6mm |
| 工厂包装数量 | 10 |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 外壳材料 | Steel |
| 系列 | 5120 |
| 工作温度范围 | - 25 C to + 85 C |
| 单位重量 | 1.481506 oz |
| 安装风格 | Screw |
| 开关功能 | Not Switched |
| 可燃性等级 | UL 94 V-0 |
| 过滤 | Yes |
| 融合 | No |
| RoHS | RoHS Compliant |
| Leakage Current Max | :373µA |
| 电容 | :0.1µF |
| Inductance Min | :5.2mH |
| Filter Terminals | :Quick Connect |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CCC |
| Approval Category | :CSA C22.2 no.42, UL 498 |
| Behind Panel Depth | :51.5mm |
| Capacitance X | :100nF |
| Capacitance Y | :2.2nF |
| 外壳材料 | :Thermoplastic |
| 颜色 | :Black |
| 外部深度 | :54.5mm |
| External Length / Height | :24.6mm |
| 外宽 | :48.6mm |
| 固定中心 | :40mm |
| 安装孔直径 | :3.6mm |
| 电感 | :4.8mH |
| 泄漏电流 | :373µA |
| No. of Contacts | :3 |
| No. of Phases | :Single |
| Operating Temperature Max | :+85°C |
| Operating Temperature Min | :-25°C |
| Panel Cut-out Size | :28.8 X 21.3m |
| 面板厚度 | :2.5mm |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.042 |
| Tariff No. | 85366990 |
| Current,Leakage | mA |
| Current,Rating | 2A |
| DielectricStrength | >1.7(L-N)/>2.7(L/N-PE)kVDC |
| FilterType | IEC,Inlet |
| MountMethod | Front,Rear |
| MountingType | Panel,Rivet,Screw |
| 端子 | QuickConnect |
| 版本 | Standard |
| Voltage,Rating | 250VAC |
| Electrical mounting | 6.3x0,8mm connectors |
| Mechanical mounting | for panel mounting, screwed |
| Flammability rating | UL94V-0 |
| 外形尺寸 | see |
| 连接器 | socket |
| 额定电流 | 2A |
| Multiplicity | 1 |
| Gross weight | 0.04 kg |
| Capacitance Cy | 2.2nF |
| Connector type | male |
| Capacitance Cx | 100nF |
| Leads | 6.3x0.8mm connectors |
| Supply voltage frequency | 50/60Hz |
| Operating temperature | -25...85°C |
| 漏电流 | 0.5mA |
| 额定电压 | 250V AC |
| Mounting holes pitch | 40mm |
| Collective package [pcs] | 10 |
| Schematic diagram | see |
| spg | 10 |
