Schurter

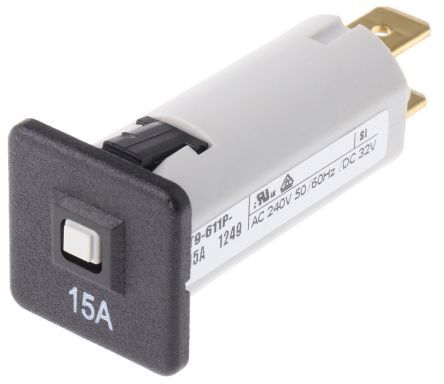

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 47.5mm |
| 长度 | 19mm |
| 最大电流 | 15 A |
| 最高工作温度 | +60°C |
| 最低工作温度 | -5°C |
| 极数 | Single pole |
| 额定电压 | 240 V ac, 32 V dc |
| 宽度 | 19mm |
| 工厂包装数量 | 100 |
| 额定电流 | 15 A |
| 绝缘强度 | 1.5 kV |
| 直流电额定电压 | 48 V |
| 零件号别名 | T9-611P-15 |
| 类型 | Circuit Breaker |
| 产品 | Thermal Circuit Breakers |
| 产品种类 | Circuit Breakers |
| 照明 | Not Illuminated |
| 工作温度范围 | - 5 C to + 60 C |
| 单位重量 | 0.338630 oz |
| 产品类型 | Circuit Breaker for Equipment |
| 电压额定值AC | 240 V |
| 端接类型 | Quick Connect |
| RoHS | RoHS Compliant |
| 系列 | T9 |
| 安装风格 | Snap In |
| 执行器类型 | Pushbutton |
| ActuatorType | Push |
| AltMfr.sType | T9-611P-15 |
| 应用 | Forpowersupplies,chargingunits,powertools,HVAC,householdandindustrialappliances,andmedicaldiagnosticequipment. |
| Brand/Series | T9-611Series |
| Current,Rating | 15A |
| 外形尺寸 | 34Lx19Wx19Hmm |
| MountingHoleSize | 16Dmm |
| MountingType | Snap-In |
| NumberofPoles | 1 |
| 第一阶段 | T9-611P-15 |
| PrimaryType | CircuitBreaker |
| Resistance,Insulation | >100Megohms |
| 标准 | IEC60934,UL1077,CSAC22.2235,GB17701,IP40(AccessibleRange) |
| Temperature,Ambient,Maximum | 60°C |
| Temperature,Ambient,Minimum | -5°C |
| 端子 | QuickConnect |
| Thickness,MountingRail | 0.8to2mm |
| Voltage,Rating | 240VAC,32VDC |
| RoHS指令 | RoHS Compliant Part |
| Leads | 6.3x0.8mm connectors |
| Number of poles | 1 |
| 重量 | 9g |
| Maximum current | 15A |
| Mounting hole diameter | Ø16mm |
| Multiplicity | 1 |
| Contacts configuration | SPST |
| Protection type | overcurrent breaker |
| Gross weight | 8.9 g |
| Dielectric strength | 1.5kV |
| Operating temperature | -5...60°C |
| Breaker features | dust proof (with protective cap) |
| 额定电压 | 240V AC, 32V DC |
| 安装 | SNAP-IN, on panel |
| Breakers application | UPS, industrial appliance, household appliance |
| spg | 100 |
| Collective package [pcs] | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
