schurter

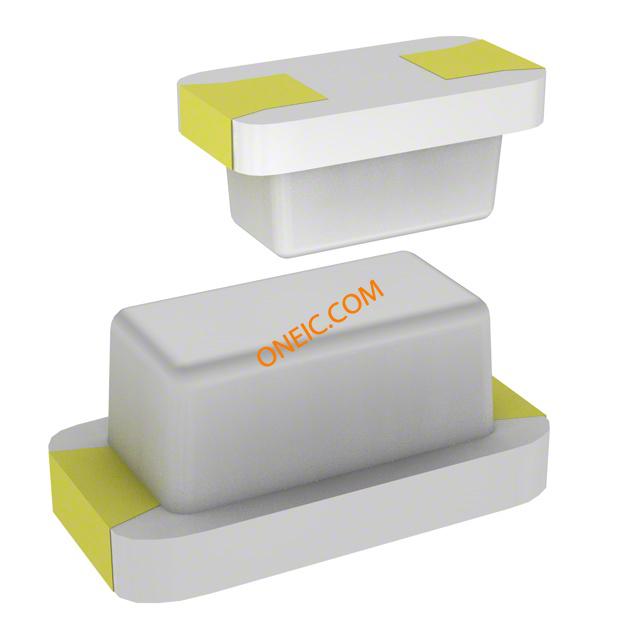

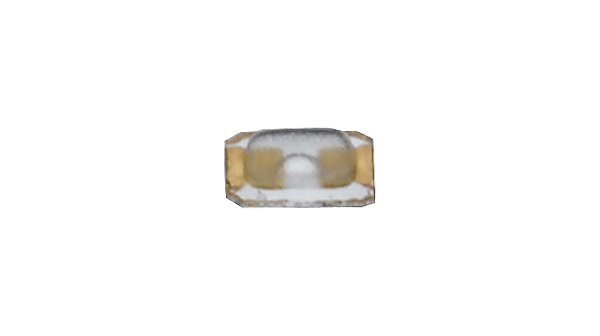

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Type | Chip |
| Current Rating | 4 A |
| Minimum Operating Temperature | -55 °C |
| Acting | Very Fast |
| Standard Package | Tape & Reel |
| Product Category | Fuses |
| RoHS | RoHS Compliant |
| Product | Surface Mount Fuses |
| Product Type | Surface Mount Fuse |
| Voltage Rating DC | 32 V |
| Fuse Type | Fast Blow |
| Fuse Size / Group | 0402 (1005 metric) |
| Dimensions | 1.05 mm L x 0.55 mm W x 1.05 mm D |
| Mounting Style | SMD/SMT |
| Termination Style | SMD/SMT |
| Series | USF 0402 |
| Body Material | Thermoplastic |
| Case Diameter | 1.05 mm |
| Case Height | 0.475 mm |
| Case Length | 1.05 mm |
| Case Width | 0.55 mm |
| Interrupt Rating | 35 A |
| Operating Temperature Range | - 55 C to + 125 C |
| Resistance | 13 mOhms |
| Factory Pack Quantity | 1000 |
| Voltage Rating | 32 VDC |
| Unit Pack | 1000 |
| MOQ | 1000 |
| Breaking Capacity @ Rated Voltage | 35A |
| Mounting Type | Surface Mount |
| Approvals | CCC, cULus |
| Packaging | Tape & Reel (TR) |
| Size / Dimension | 0.041" L x 0.022" W x 0.019" H (1.05mm x 0.55mm x 0.48mm) |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating - DC | 32V |
| Response Time | Fast |
| DC Cold Resistance | 0.013 Ohm |
| Melting I²t | 0.113 |
| Package/Case | 0402 (1005 Metric) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 486-1662-1 |
| Unit Weight | 0.000071 oz |
| Brand/Series | USFSeries |
| Class | ClassFF |
| Current,Rating | 4A |
| Material,Body | Thermoset |
| MountingType | PCB |
| PrimaryType | Semiconductor |
| Resistance,DC | 13Milliohms |
| Size | 0402 |
| Termination | SMT |
| Voltage,Rating | 32VDC |
| Rated current | 4 A |
| Solderability | 245 °C, 3 s, IEC60068-2-58 |
| Breaking capacity | 35 A |
| Construction form | 0402 |
| Temperature range | -55...+125 °C |
| Characteristic (time/current) | super fast-blow |
