Schurter

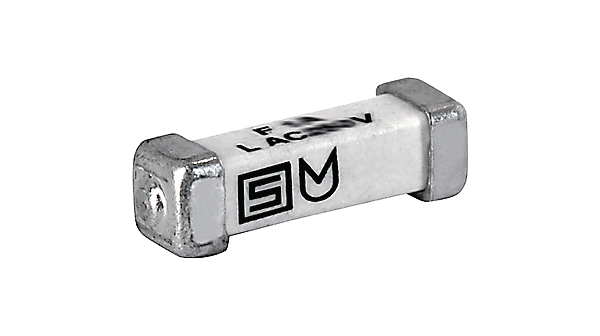

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 产品 | Surface Mount Fuses |
| 产品类型 | Surface Mount Fuse |
| 额定电流 | 500 mA |
| 电压额定值AC | 250 V |
| 直流电额定电压 | 125 V |
| 保险丝类型 | Fast Blow |
| 保险丝大小/组5毫米×20毫米 | 4012 (10103 metric) |
| 外形尺寸 | 10.1 mm L x 3 mm W |
| 安装风格 | SMD/SMT |
| 端接类型 | SMD/SMT |
| 系列 | UMF 250 |
| 阀体材质 | Ceramic |
| 表壳厚度 | 3 mm |
| 表壳长度 | 10.1 mm |
| 表壳宽度 | 3 mm |
| 中断额定值 | 200 A |
| 工作温度范围 | - 55 C to + 125 C |
| 封装 | Bulk |
| 工厂包装数量 | 100 |
| 类型 | Non-Resettable Fuse |
| 额定电压 | 250 VAC/125 VDC |
| 寿命 | New Product: New from this manufacturer. |
| 单位包 | 100 |
| 最小起订量 | 100 |
| 认证 | VDECertificateNumber:40027880,ULFileNumber:E41599 |
| Brand/Series | UMF250Series |
| 等级 | ClassF |
| Current,Rating | 0.5-10A |
| FuseType | Non-Resettable |
| Material,Body | Ceramic |
| Material,Housing | Ceramic |
| Material,Terminal | Tin-PlatedCopperAlloy |
| MountingType | PCB,SMT |
| PrimaryType | Non-Resettable |
| 标准 | IEC60127-4/2,UL248-14,CSAC22.2No.248.14 |
| Temperature,Ambient | -40to+85°C |
| 端子 | SMT |
| Voltage,Rating | 250/125VAC/VDC |
| RoHS指令 | RoHS Compliant Part |
| PAD dimensions | 2 x 3.75 |
| 额定电流 | 0.5 A |
| Construction form | 10.1 x 3 x 3 mm |
| Voltage drop | 343 |
| Breaking capacity | UL:200 A@ 250 VAC, p.f. ≥ 0.95 / 200 A @ 125 VDC |
| Solderability | 245 °C, 3 s, IEC60068-2-58 |
| Resistance to soldering heat | 260 °C, 10 s, IEC 60068-2-58 |
| Temperature range | -55...+125 °C |
| Characteristic (time/current) | fast-blow |
| 电流 | 0.5 A |
| 时间characteri | FAST |
| 打破电容 | 100 |
| 电压 | 250 V |
| 汽车 | NO |
| 尺寸 | 10,1x3 |
| Leadfree Defin | RoHS-conform |
