Schurter

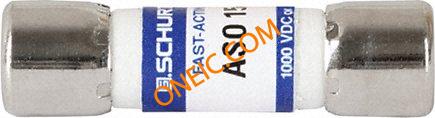

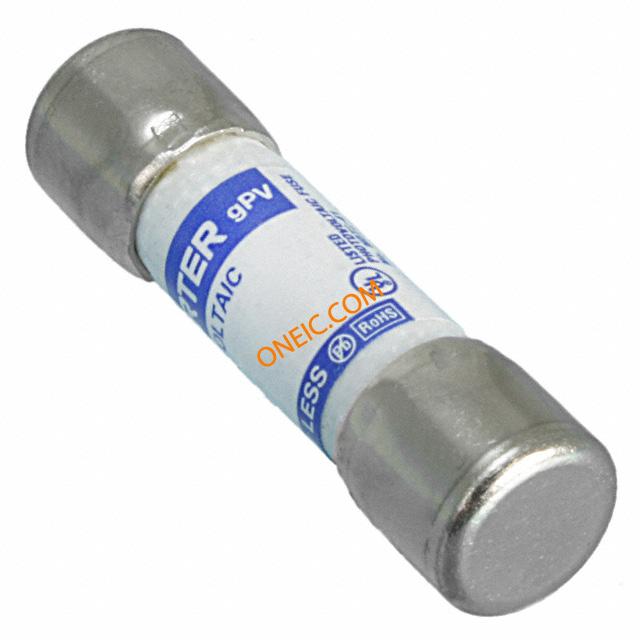

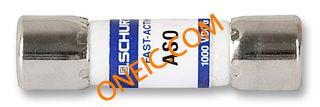

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Fuses |
| RoHS | RoHS Compliant |
| 产品 | Specialty Fuses |
| 产品类型 | Solar Photovoltaic Fuse |
| 体风格 | Cartridge Fuses |
| 额定电流 | 8 A |
| 直流电额定电压 | 1 KV |
| 保险丝类型 | Fast Blow |
| 保险丝大小/组5毫米×20毫米 | 5AG Midget (10.3 mm x 38.1 mm) |
| 外形尺寸 | 38 mm L x 10.3 mm D |
| 安装风格 | Holder |
| 端接类型 | Clip |
| 系列 | ASO 10.3x38 |
| 表壳直径 | 10.3 mm |
| 表壳长度 | 38 mm |
| 中断额定值 | 20 kA |
| 工作温度范围 | - 45 C to + 85 C |
| 类型 | Solar Photovoltaic Fuse |
| 额定电压 | 1 kVDC |
| 单位包 | 10 |
| 最小起订量 | 10 |
| 电流 | 8A |
| 安装类型 | Holder |
| 电压 - 额定 | 1000VDC (1kV) |
| 工作温度 | -40°C ~ 85°C |
| 尺寸/尺寸 | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) |
| 熔化I²t | 199 |
| 标准包装 | 10 |
| 封装/外壳 | 5AG, 10mm x 38.1mm |
| RoHS指令 | Lead free / RoHS Compliant |
| 分断能力在最大额定电压 | 20 kA |
| 直径 | 10.3mm |
| 熔断速度 | F |
| 身高 | 38mm |
| 最高工作温度 | +85°C |
| 最低工作温度 | -40°C |
| 单位重量 | 0.282192 oz |
| Fuse Current | :8A |
| 断能力 | :20kA @ 1kV DC |
| Fuse Size Metric | :10mm x 38mm |
| Fuse Size Imperial | :13/32" x 1-1/2" |
| Blow Characteristic | :Fast Acting |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA |
| Approval Category | :UL Recognised |
| Fuse Size Code | :5AG |
| Fuse Type Blowing Characteristic | :Quick-Acting |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Power Dissipation Max | :1790mW |
| Voltage Rating V DC | :1kV |
| Weight (kg) | 0.008 |
| Tariff No. | 85361010 |
| Multiplicity | 1 |
| Fuses application | photovoltaic application protection |
| 额定电流 | 8A |
| 额定电压 | 1kV DC |
| Fuse size | 10x38mm |
| Fuse kind | ceramic, industrial |
| Gross weight | 8.55 g |
| Breaking capacity | 20kA |
| Manufacturer series | ASO |
| Fuse characteristics | gPV |
| Fuse type | fuse |
| Collective package [pcs] | 10 |
| spg | 10 |
