schurter

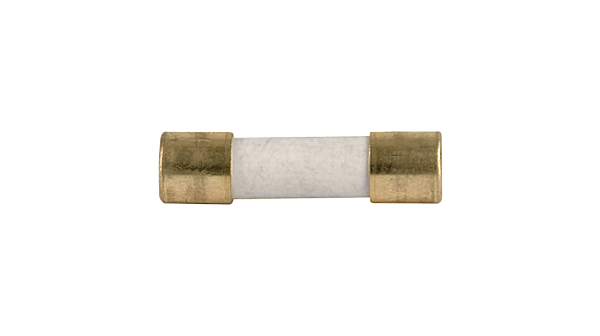

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Miniature |
| 额定电流 | 1 A |
| 最低工作温度 | -55 °C |
| 代理 | Slow Blow |
| 最大直流额定电压 | 300 V |
| 标准包装 | Bulk |
| 产品种类 | Fuses |
| RoHS | RoHS Compliant |
| 产品 | Surface Mount Fuses |
| 产品类型 | Surface Mount Ceramic Fuse |
| 电压额定值AC | 250 V |
| 直流电额定电压 | 300 V |
| 保险丝类型 | Time Delay / Slow Blow |
| 保险丝大小/组5毫米×20毫米 | 5 mm x 20 mm |
| 外形尺寸 | 20 mm L x 5.2 mm D |
| 安装风格 | SMD/SMT |
| 端接类型 | SMD/SMT |
| 系列 | SMD-SPT |
| 阀体材质 | Ceramic |
| 表壳直径 | 5.2 mm |
| 表壳长度 | 20 mm |
| 中断额定值 | 1.5 kA |
| 工作温度范围 | - 55 C to + 125 C |
| 工厂包装数量 | 100 |
| 额定电压 | 250 VAC/300 VDC |
| 单位包 | 100 |
| 最小起订量 | 100 |
| 时的断路容量额定电压 | 1500A |
| 安装类型 | Holder |
| 额定电压 - AC | 250V |
| 认证 | cULus, VDE |
| 封装 | Bulk |
| 尺寸/尺寸 | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| 工作温度 | -55°C ~ 125°C |
| 额定电压 - DC | 300V |
| 响应时间 | Slow |
| 熔化I²t | 1.1 |
| 封装/外壳 | 5mm x 20mm |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 0.035274 oz |
| Voltage Rating V AC | :250V |
| Voltage Rating V DC | :300V |
| Fuse Current | :1A |
| 断能力 | :10kA @ 125V AC, 1.5kA @ 250V AC / 300V DC |
| Blow Characteristic | :Time Delay |
| Fuse Case Style | :SMD |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CCC |
| 主体直径 | :5.2mm |
| 机身长度 | :20mm |
| Breaking Capacity Current AC | :1500A |
| Breaking Capacity Current UL | :10000A |
| 外宽 | :5mm |
| Fuse Breaking Capacity Voltage AC | :250V |
| Fuse Size Metric | :5mm x 20mm |
| Fuse Type Blowing Characteristic | :Time Lag T |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-40°C |
| Voltage Drop @ Rated Current | :180mV |
| Weight (kg) | 0.002 |
| Tariff No. | 85361010 |
| Multiplicity | 1 |
| Soldering temperature | 245°C / 3 s |
| Max voltage drop | 250mV |
| 额定电流 | 1A |
| 额定电压 | 250V AC, 300V DC |
| Fuse type | fuse |
| Fuse size | 5x20mm |
| Fuse kind | ceramic |
| spg | 10 |
| Gross weight | 1.1 g |
| Breaking capacity | 1.5kA |
| Fuse characteristics | time-lag |
| 接触镀层 | gold plated |
| Energy I2t | 1.1A2s |
| Breaking characteristics | 1,5 In: min 1 h, 2,1 In: max 30 min., 2,75 In: min 750 ms, 2,75 In: max 80 s, 4 In: min 95 ms, 4 In: max 5 s, 10 In: min 10 ms, 10 In: max 150 ms |
| Contact material | copper |
| Collective package [pcs] | 10 |
| 安装 | SMD |
| Manufacturer series | SMD-SPT |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
