Panasonic Electric Works
所示图像仅为示意图。请从产品数据表中获得准确的规格。

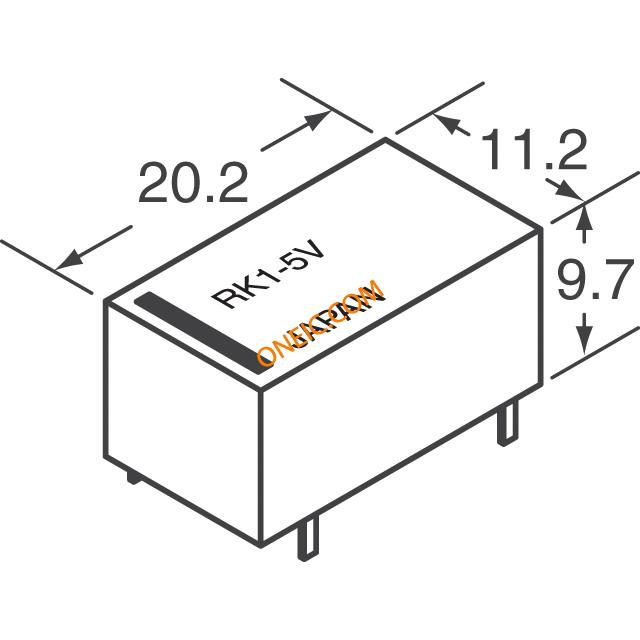

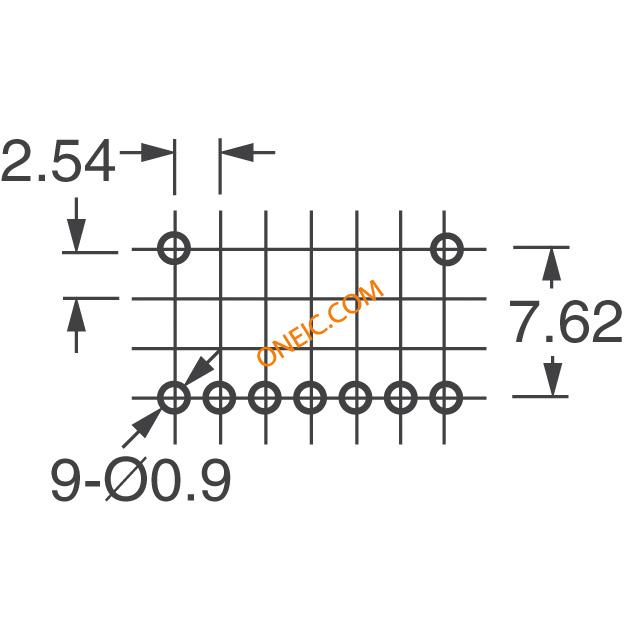

| Type | Description |
|---|---|
| 产品种类 | High Frequency / RF Relays |
| RoHS | RoHS Compliant |
| 触点形式 | 1 Form C (SPDT-BM) |
| 触点额定电流 | 500 mA |
| 线圈电压 | 5 VDC |
| 线圈类型 | Single Side Stable |
| 频率 | 1.5 GHz |
| 功耗 | 200 mW |
| 端接类型 | Solder Terminal |
| 隔离 | 60 dB at 1.5 GHz |
| 插入损耗 | 0.3 dB at 1.5 GHz |
| 线圈电流 | 40.7 mA |
| 线圈电阻 | 125 Ohms |
| 联系额定值 | 500 mA |
| 封装 | Bulk |
| 工厂包装数量 | 50 |
| 驻波比 | 1.5 at 1.5 GHz |
| 寿命 | Obsolete |
| 开启电压（最大值） | 3.75 VDC |
| 产品特点 | Sealed - Fully |
| 关闭电压（最小值） | 0.5 VDC |
| 线圈功率 | 200 mW |
| 继电器类型 | RF |
| 切换电压 | 30VDC - Max |
| 释放时间 | 6ms |
| 工作温度 | -40°C ~ 70°C |
| 操作时间 | 10ms |
| 触点额定值（电流） | 10mA |
| 标准包装 | 50 |
| 安装类型 | Through Hole |
| RoHS指令 | Lead free / RoHS Compliant |
| 操作功能 | Single Side Stable |
| Vibration resistance - Destructive | 10 to 55 Hz at double amplitude of 5 mm |
| Initial breakdown voltage - Between open contacts | 500 Vrms |
| Conditions for operation, transport and storage (Not freezing and condensing at low temperature) - Humidity | 5 to 85% R.H. |
| 安装 | PC Board |
| Max switching power | 10 W |
| 电流 | 0.5 A |
| Nominal operating current | 40.7 mA |
| Vibration resistance - Functional | 10 to 55 Hz at double amplitude of 3 mm |
| Initial breakdown voltage - Between contact and earth terminal | 500 Vrms |
| Initial contact resistance, max (By voltage drop 10V DC 10mA) | 100 mohm |
| 类型 | Standard type |
| Operate time [Set time] (at nominal voltage) | Max. 10 ms (Approx. 6 ms) [Max. 10 ms [Approx. 5ms]] |
| Initial breakdown voltage - Between contact and coil | 1,000 Vrms |
| Coil resistance, (10%) | 125 ohm |
| High frequency characteristics (Impedance 75ohm) (Initial) - Isolation | Min. 60 dB (at 1.5 GHz) |
| Release time (without diode) [Reset time] (at nominal voltage) | Max. 6 ms (Approx. 3 ms) [Max. 10 ms [Approx. 5ms]] |
| Maximum Allowable voltage, (at 60C 140F) | 5.5 VDC |
| Conditions for operation, transport and storage (Not freezing and condensing at low temperature) - Ambient temp | 40°C to 70°C, 40°F to 158°F |
| MainCategory | Relays |
| Initial insulation resistance | Min. 100 Mohm at 500 V DC |
| Nominal switching capacity | 0.01 A 24 V DC 10 W (at 1.2 GHz, Impedance 50W) |
| High frequency characteristics (Impedance 75ohm) (Initial) - Insertion loss | Max. 0.2 dB (at 900 MHz) |
| Pick-up voltage, max | 3.75 VDC |
| High frequency characteristics (Impedance 50ohm) (Initial) - VSWR | Max. 1.5 (at 900 MHz) |
| Drop-out voltage, min | 0.5 VDC |
| SubCategory | High Frequency Relays |
| Nominal operating power | 200 mW |
| Max switching current | 0.5 A |

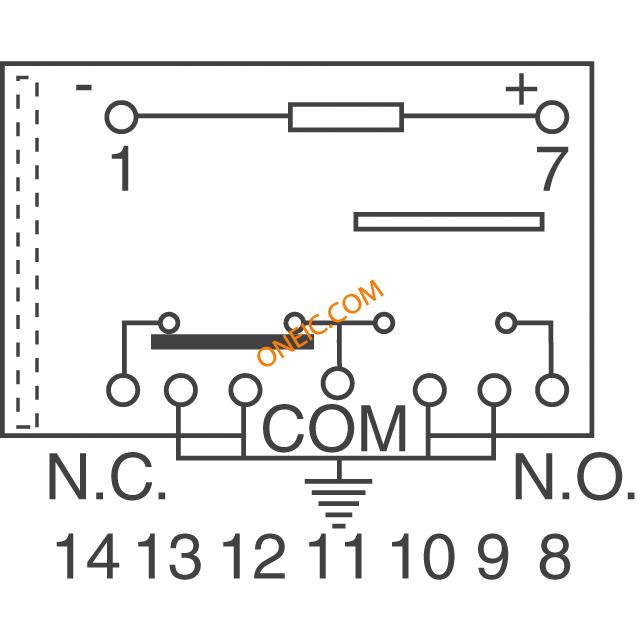

| 联系配置 | 1C SPDT |
| Contact material | Gold-clad |
| High frequency characteristics (Impedance 50ohm) (Initial) - Insertion loss | Max. 0.3 dB (at 900 MHz) |
| High frequency characteristics (Impedance 75ohm) (Initial) - VSWR | Max. 1.2 (at 900 MHz) |
| Temperature rise | Max. 60°C with nominal coil voltage across coil and at nominal switching capacity |
| Shock resistance - Functional | Min. 196 m/s^2 {20 G} |
| Expected life (min operations) -Electrical | 0.01 A 24 V DC: 3x10^5, 10 W 1.2 GHz: 10^5 |
| Max switching voltage | 30 V DC |
| Shock resistance - Destructive | Min. 980 m/s^2 {100 G} |
| High frequency characteristics (Impedance 50ohm) (Initial) - Isolation | Min. 60 dB (at 1.5 GHz) |
| Expected life (min operations) - Mechanical | 5x10^6 |
