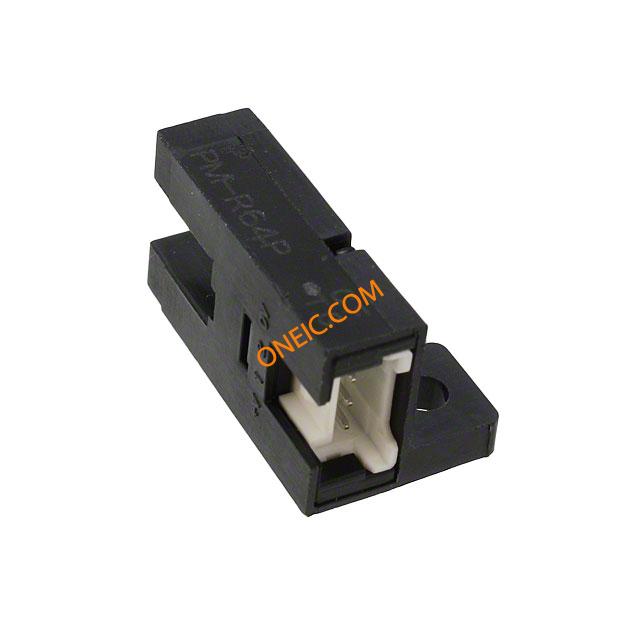

Panasonic Electric Works - ACSD
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装类型 | Chassis Mount |
| 检测方法 | Transmissive |
| 封装 | Bulk |
| 工作温度 | -25°C ~ 55°C |
| 感应距离为5mm | 0.197" (5mm) |
| 标准包装 | 1 |
| 响应时间 | 20µs |
| 封装/外壳 | Module, Wire Leads, Slot Type |
| 类型 | Unamplified |
| 其他名称 | 1110-1366 |
| 输出配置 | PNP - Dark-ON/Light-ON - Selectable |

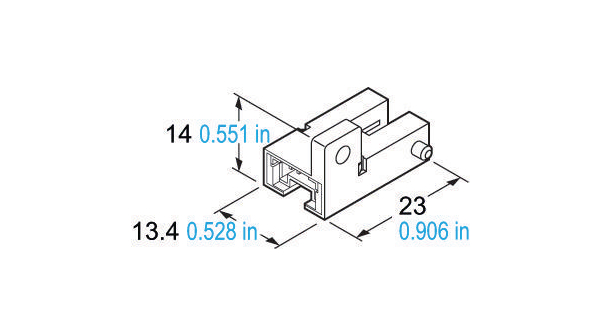

| Dimensions L x W x H | 23 x 13.4 x 14 mm |
| Sensor type | Fork light barrier |
| Light type | LED, infrared |
| Load current | 50 |
| 长度 | 23 |
| Construction form | With connector |
| 身高 | 14 |
| 宽度 | 13.4 |
| 连接方式 | Cable 1 m |
| Operating temperature | -25...+55 °C |
| No-load current | 50 mA |
| Operating voltage | 5...24 VDC |
| 输出 | PNP |
| Fork width | 5 |
| Protection rating | IP 40 |
| Switching interval | 0...5 mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
