Panasonic Electric Works

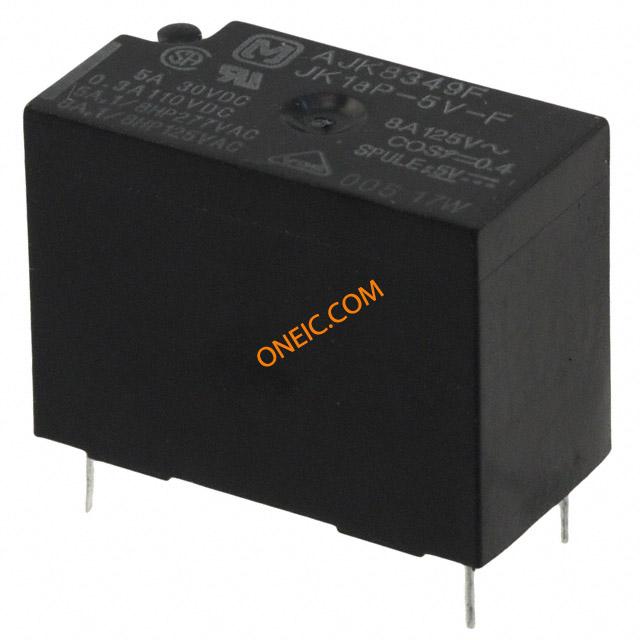

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线圈电流 | 11mA |
| 线圈电压 | 18VDC |
| 开启电压（最大值） | 14.4 VDC |
| 产品特点 | Sealed - Fully |
| 线圈类型 | Non Latching |
| 关闭电压（最小值） | 0.9 VDC |
| 线圈功率 | 200 mW |
| 触点形式 | SPST-NO (1 Form A) |
| 继电器类型 | General Purpose |
| 端接类型 | PC Pin |
| 切换电压 | 250VAC, 110VDC - Max |
| 释放时间 | 2ms |
| 封装 | Bulk |
| 工作温度 | -40°C ~ 70°C |
| 操作时间 | 4ms |
| 触点额定值（电流） | 3A |
| 标准包装 | 100 |
| 安装类型 | Through Hole |
| 触点材料 | Silver Alloy |
| 线圈电阻 | 1.62 kOhms |
| Initial contact resistance, max (By voltage drop 6 V DC 1 A) | 100 mohm |
| 操作功能 | Single Side Stable |
| 安装 | PC Board |
| Max switching power | 90 W, 500 VA |
| Expected life (min operations) - Electrical (at 20 cpm) (at rated load) | 10^5 |
| Unit weight | Approx. 7 g .25 oz |
| Temperature rise (ambient temperature: 70C) | Max. 45C with nominal coil voltage and at maximum allowable contact current |
| Drop-out voltage, (min) | 0.9 VDC |
| Max allowable voltage at 70C | 23.4 VDC |
| Protectiive constructiion | Sealed type |
| Initial breakdown voltage - Between contact and coil | 2,000 Vrms for 1 min. |
| Contact material | Silver alloy |
| Initial insulation resistance | Min. 100 Mohm at 500 V DC |
| Functional Shock Resistance | Min. 98 m/s^2 {10 G} |
| Operate time (at nominal voltage) | Approx. 4 ms |
| MainCategory | Relays |
| Initial breakdown voltage - Between open contacts | 750 Vrms for 1 min. |
| Nominal switching capacity | 3 A 30 V DC, 3 A 125 V AC |
| Destructive Shock Resistance | Min. 980 m/s^2 {100 G} |
| Pick-up voltage (max) | 14.4 VDC |
| Coil resistance (10%) | 1620 ohm |
| Max operating speed | 20 cpm |
| Nominal operating power | 200 mW |
| Max switching current | 3 A |
| SubCategory | General Purpose Relay |
| 湿度 | 5 to 85%R.H. |
| 联系配置 | 1A SPST-NO |
| Ambient temp | 40C to +70C, 40F to +158F |
| 电流 | 3 Amps |
| Release time (at nominal voltage) (without diode) | Approx. 2 ms |
| Destructive Vibration resistance | 10 to 55 Hz at double amplitude of 2 mm |
| Surge voltage between contact and coil | Min. 8,000 V |
| Max switching voltage | 250 V AC, 110 V DC (0.3 A) |
| Nominal operating current, (10%) | 11 mA |
| Expected life (min operations) - Mechanical (at 180 cpm) | 5x10^6 |
| Functional Vibration resistance | 10 to 55 Hz at double amplitude of 1.6 mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
