Panasonic

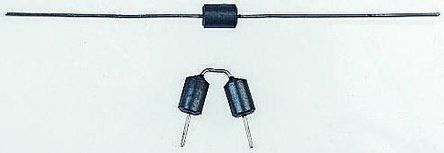

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外形尺寸 | 2.8 Dia. x 4.8mm |
| 长度 | 4.8mm |
| 最大额定电流 | 7A |
| 最高工作温度 | +85°C |
| 最低工作温度 | -25°C |
| 安装类型 | Through Hole |
| 工作频率 | 100MHz |
| 端接类型 | PC Pin |
| Ferrite Case Style | :- |
| Ferrite Mounting | :Through Hole |
| Impedance @ 100MHz | :30ohm |
| Impedance Tolerance | :- |
| DC Current Rating | :7A |
| DC Resistance Max | :0.01ohm |
| 系列 | :PANASONIC - EXCEL Series |
| External Diameter | :2.8mm |
| External Length / Height | :4.8mm |
| 身高 | :4.8mm |
| 阻抗 | :30ohm |
| Inductor Case Style | :Axial Leaded |
| No. of Pins | :2 |
| 产品范围 | :PANASONIC - EXCEL Series |
| Weight (kg) | 0.000185 |
| Tariff No. | 85045020 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
