PANASONIC

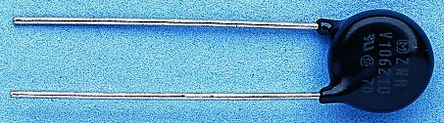

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 系列 | :V |
| Varistor Type | :High Surge Current |
| Peak Surge Current @ 8/20µs | :5kA |
| Varistor Case | :Disc 14mm |
| Clamping Voltage Vc Max | :1.025kV |
| Peak Energy (10/1000uS) | :190J |
| Voltage Rating V DC | :505V |
| Voltage Rating V AC | :385V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| 工作温度范围 | :-40°C to +85°C |
| 抑制器类型 | :Absorber |
| Varistor Voltage @ 1mA | :620V |
| Weight (kg) | 0.0032 |
| Tariff No. | 85332100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
