Panasonic

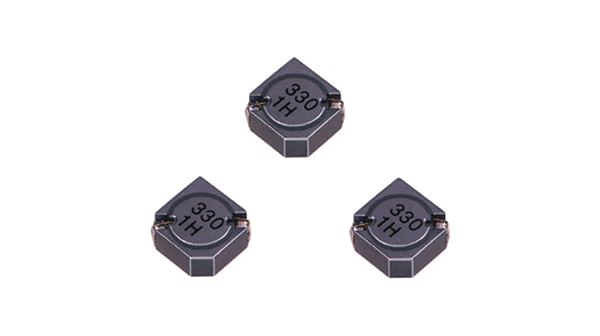

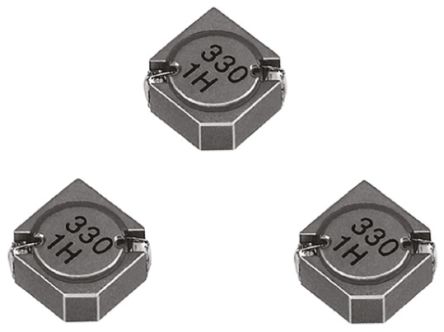

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 8mm |
| 外形尺寸 | 8 x 8 x 4.7mm |
| 身高 | 4.7mm |
| 电感 | 33 μH |
| 长度 | 8mm |
| 最大直流电流 | 1600mA |
| 最大直流电阻 | 84mΩ |
| 封装/外壳 | ELL8TP |
| 屏蔽 | Yes |
| 容差 | ±20% |
| 产品范围 | :PANASONIC - ELL-8TP Series |
| Inductance Tolerance | :± 20% |
| Inductor Construction | :Shielded |
| DC Resistance Max | :0.084ohm |
| RMS Current (Irms) | :1.6A |
| Saturation Current (Isat) | :1.6A |
| Case Dimensions | :8mm x 8mm x 5mm |
| 外部深度 | :8mm |
| External Length / Height | :4.7mm |
| 外宽 | :8mm |
| 电感类型 | :Choke |
| No. of Pins | :2 |
| Q Test Frequency | :100kHz |
| 谐振频率 | :100kHz |
| 系列 | :8TP |
| Weight (kg) | 0.0016 |
| Tariff No. | 85045095 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
