Panasonic

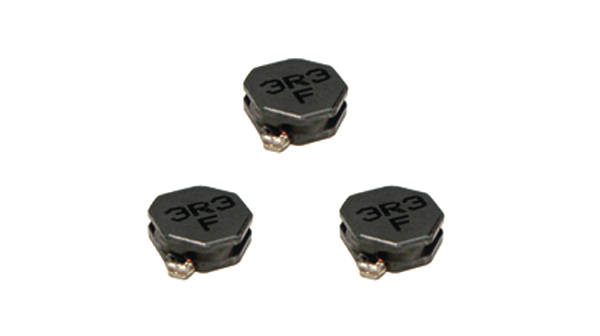

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 5.5mm |
| 外形尺寸 | 5.5 x 5.5 x 2mm |
| 身高 | 2mm |
| 电感 | 22 μH |
| 长度 | 5.5mm |
| 最大直流电流 | 750mA |
| 最大直流电阻 | 290mΩ |
| 屏蔽 | Yes |
| 容差 | ±20% |
| 产品范围 | :PANASONIC - ELL-5PS Series |
| Inductance Tolerance | :± 20% |
| Inductor Construction | :Shielded |
| DC Resistance Max | :0.022ohm |
| RMS Current (Irms) | :650mA |
| Saturation Current (Isat) | :650mA |
| Case Dimensions | :5mm x 5mm x 2mm |
| 电感类型 | :Choke |
| No. of Pins | :2 |
| 封装 | :Cut Tape |
| Self Resonant Frequency Min | :100kHz |
| 系列 | :S |
| Weight (kg) | 0.00005 |
| Tariff No. | 85045020 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
