Panasonic

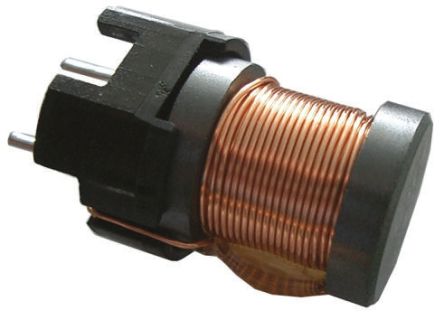

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 芯材 | Ferrite |
| 身高 | 23mm |
| 电感 | 27 μH |
| 引线间距 | 7.5mm |
| 长度 | 16mm |
| 最大直流电流 | 4.3A |
| 最大直流电阻 | 34mΩ |
| 容差 | ±10% |
| 产品范围 | :PANASONIC - ELC-16B Series |
| Inductance Tolerance | :± 10% |
| DC Resistance Max | :0.034ohm |
| RMS Current (Irms) | :4.3A |
| Case Dimensions | :16mm x 22mm |
| DC Current Rating | :4.3A |
| Inductor Case Style | :Radial Leaded |
| 电感类型 | :Choke Coil |
| 引线间距 | :7.5mm |
| No. of Pins | :2 |
| 谐振频率 | :10kHz |
| 测试频率 | :10kHz |
| Weight (kg) | 0.0102 |
| Tariff No. | 85045020 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
