Panasonic

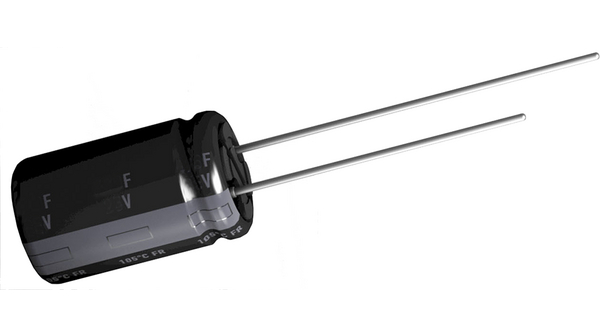

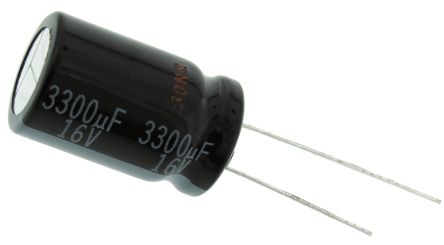

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 电容 | 3300µF |
| 结构 | Radial |
| 直径 | 12.5mm |
| 外形尺寸 | 12.5 Dia. x 20mm |
| 身高 | 20mm |
| 引线直径 | 0.6mm |
| 引线间距 | 5mm |
| 泄漏电流 | |
| 寿命 | 2000h |
| 最高工作温度 | +105°C |
| 最低工作温度 | -55°C |
| 安装类型 | Through Hole |
| 纹波电流 | 1170mA |
| 容差 | ±20% |
| 公差减 | -20% |
| 公差加 | +20% |
| 电压 | 16 V dc |
| 产品范围 | :PANASONIC - HD Series |
| 电容公差 | :± 20% |
| 额定电压 | :16V |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :5mm |
| Life Time @ Temperature | :2000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| 封装 | :- |
| AC Ripple Current @ 120Hz | :1170mA |
| 工作温度范围 | :-55°C to +105°C |
| Weight (kg) | 0.01 |
| Tariff No. | 85322200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
