PANASONIC

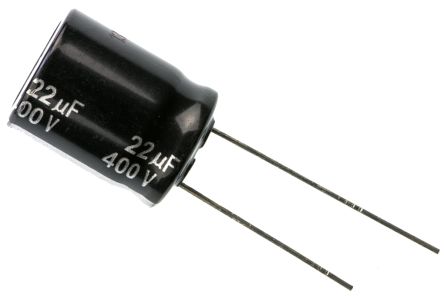

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 100 |
| 最小起订量 | 10000 |
| 产品范围 | :PANASONIC - EE Series |
| 电容 | :22µF |
| 电容公差 | :± 20% |
| 额定电压 | :400V |
| 直径 | :16mm |
| 身高 | :20mm |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :7.5mm |
| Life Time @ Temperature | :10000 hours @ 105°C |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :105°C |
| External Length / Height | :20mm |
| No. of Pins | :2 |
| 工作温度范围 | :-25°C to +105°C |
| Ripple Current AC | :860mA |
| Ripple Current Frequency | :100kHz |
| Weight (kg) | 0.00722 |
| Tariff No. | 85322200 |
| CaseSize | 16mmDia.x20mmL |
| Material,Element | AluminumElectrolytic |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | –25°C |
| 端子 | Radial |
| 容差 | ±20% |
| Voltage,Rating | 400VDC |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
