PANASONIC

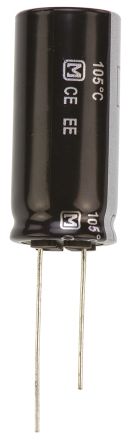

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 50 |
| 最小起订量 | 2000 |
| 产品范围 | :PANASONIC - EE Series |
| 电容 | :100µF |
| 电容公差 | :± 20% |
| 额定电压 | :400V |
| 直径 | :18mm |
| 身高 | :40mm |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :7.5mm |
| Life Time @ Temperature | :10000 hours @ 105°C |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :105°C |
| External Length / Height | :40mm |
| No. of Pins | :2 |
| 工作温度范围 | :-25°C to +105°C |
| Ripple Current AC | :2060mA |
| Ripple Current Frequency | :100kHz |
| Weight (kg) | 0.01844 |
| Tariff No. | 85322200 |
| CaseSize | 18mmDia.x40mmL |
| Material,Element | AluminumElectrolytic |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | –25°C |
| 端子 | Radial |
| 容差 | ±20% |
| Voltage,Rating | 400VDC |
| RoHS指令 | RoHS Compliant Part |
| Body dimensions | Ø18 x 40mm |
| 安装 | THT |
| Capacitor type | electrolytic |
| Gross weight | 0.02 kg |
| Operating temperature | -25...105°C |
| Operating voltage | 400V |
| Multiplicity | 1 |
| Terminal pitch | 7.5mm |
| Collective package [pcs] | 200 |
| spg | 200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
