panasonic

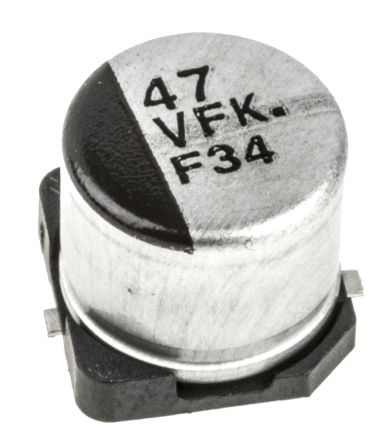

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装 | Surface Mount |
| 电容值 | 47 uF |
| 电压 | 35 Vdc |
| 容差 | 20 % |
| 纹波电流 | 240 mA |
| 寿命 | 2000 h |
| 产品直径 | 6.3 mm |
| 产品高度 | 5.8 mm |
| 工作温度 | -55 to 105 °C |
| 类型 | Cylindrical |
| 匹配代码 | HCRL47U35V |
| 风格 | SMD |
| 单位包 | 1000 |
| 标准的提前期 | 16 weeks |
| 使用目的 | NA |
| 增刊。 | 6,3x5,8mm |
| 汽车 | AECQ200-D |
| C（N ） | 47µF |
| Permis.T （ A）分 | -55°C |
| Addi.spec | 250BI |
| 无铅Defin | RoHS-conform |
| 寿命@ TAMAX | 2000h |
| V（ N） | 35V |
| 宽容POS | 20% |
| Rutronik尺寸 | 6x5mm |
| Z（ 100kHz/20 ℃） | 360mOhm |
| 我（ 100kHz/105 °C ） | 240mA |
| 形成的线索 | NA |
| 精读。 | NA |
| Permiss.Ta max | 105°C |
| 最小起订量 | 1000 |
| 封装 | REEL |
| 帽。 | -20% |
| 产品范围 | :PANASONIC - FK Series |
| 电容 | :47µF |
| 额定电压 | :35V |
| Capacitor Case Style | :Radial Can - SMD |
| 直径 | :6.3mm |
| 身高 | :5.4mm |
| Ripple Current AC | :240mA |
| Life Time @ Temperature | :2000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| MSL | :- |
| 电容公差 | :± 20% |
| External Length / Height | :5.4mm |
| 阻抗 | :0.36ohm |
| Operating Lifetime | :2000h |
| 工作温度范围 | :-55°C to +105°C |
| Power Factor | :0.12 |
| Power Factor Frequency | :120Hz |
| Ripple Current Frequency | :100kHz |
| Ripple Current Temperature | :105°C |
| 系列 | :FK |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Voltage Rating V DC | :35V |
| Weight (kg) | 0.0005 |
| Tariff No. | 85322200 |
| 安装类型 | :SMD |
| Reel Quantity | :1000 |
| Material,Element | AluminumElectrolytic |
| 端子 | SMT |
| Voltage,Rating | 35VDC |
| RoHS指令 | RoHS Compliant Part |
| Body dimensions | Ø6.3 x 5.8mm |
| Gross weight | 0.57 g |
| Capacitor type | electrolytic |
| Operating voltage | 35V |
| Multiplicity | 1 |
| Collective package [pcs] | 1000 |
| spg | 1000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
