Panasonic

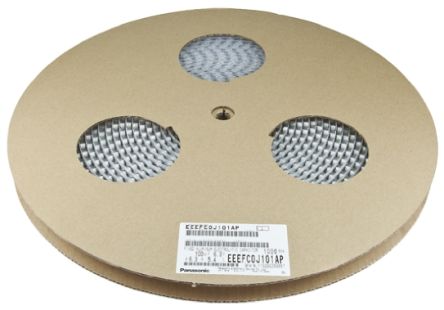

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 电容 | 10µF |
| 结构 | Metal Can |
| 直径 | 5mm |
| 外形尺寸 | 5 Dia. x 5.8mm |
| 等效串联电阻 | 0.7Ω |
| 身高 | 5.8mm |
| 引线直径 | 0.65mm |
| 引线间距 | 1.5mm |
| 泄漏电流 | 3.5 μA |
| 寿命 | 2000h |
| 最高工作温度 | +105°C |
| 最低工作温度 | -55°C |
| 安装类型 | Surface Mount |
| 封装/外壳 | C |
| 纹波电流 | 160mA |
| 容差 | ±20% |
| 公差减 | -20% |
| 公差加 | +20% |
| 电压 | 35 V dc |
| 工作温度范围 | -55C to 105C |
| 弧度硬化 | No |
| 故障率 | Not Required |
| 引线直径（标称） | Not Required mm |
| 公差（ +或 - ） | 20% |
| DCL | 3 uA |
| 引线间距（ NOM ） | Not Required mm |
| 安装风格 | Surface Mount |
| 封装 | Tape and Reel |
| 类型 | Electrolytic |
| 坐在飞机高度 | Not Required mm |
| 外形尺寸（mm ） | 5 X 5.8 |
| 产品长度（mm ） | Not Required mm |
| 产品厚度（毫米） | Not Required mm |
| 产品高度（mm ） | 5.8 mm |
| 产品直径（mm ） | 5 mm |
| 产品范围 | :PANASONIC - FK Series |
| 电容公差 | :± 20% |
| 额定电压 | :35V |
| Capacitor Case Style | :Radial Can - SMD |
| Ripple Current AC | :160mA |
| Life Time @ Temperature | :1000 hours @ 105°C |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :105°C |
| MSL | :- |
| External Length / Height | :5.8mm |
| 外宽 | :5.3mm |
| 频率公差 | :120Hz |
| 阻抗 | :0.7ohm |
| Impedance Frequency | :100kHz |
| Impedance Temperature | :20°C |
| Lead Cross-section Width | :0.65mm |
| Operating Lifetime | :1000h |
| 工作温度范围 | :-40°C to +105°C |
| Power Factor | :0.12 |
| Power Factor Frequency | :120Hz |
| Power Factor Temperature | :20°C |
| Reel Quantity | :1000 |
| Ripple Current Frequency | :100kHz |
| Ripple Current Temperature | :105°C |
| 系列 | :FKA |
| 胶带宽度 | :12mm |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Tolerance Temperature | :20°C |
| Voltage Rating V DC | :35V |
| Weight (kg) | 0.045 |
| Tariff No. | 85322500 |
| Material,Element | AluminumElectrolytic |
| SpecialFeatures | HighTemperature |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | –55°C |
| 端子 | SMT |
| Voltage,Rating | 35VDC |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
