panasonic

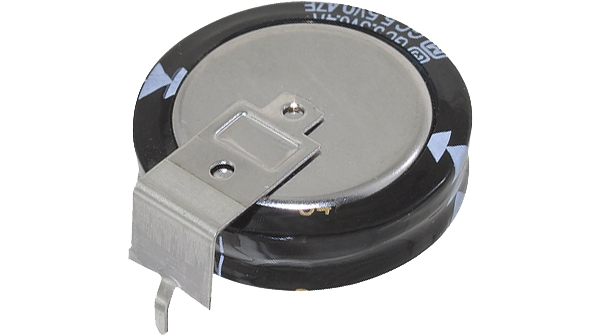

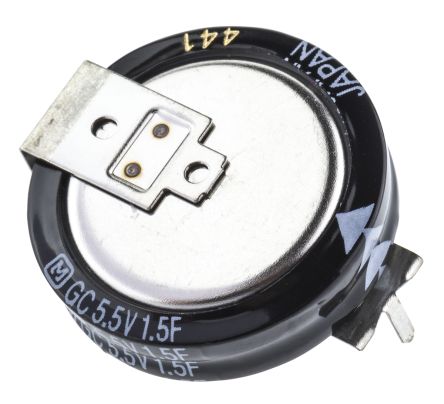

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装/外壳 | 20 X 19 X 6 |
| 安装 | Through Hole |
| 电容值 | 1.5 F |
| 电压 | 5.5 Vdc |
| 产品厚度 | 19 mm |
| 产品长度 | 20 mm |
| 工作温度 | -25 to 70 °C |
| 结构 | Stacked Coin |
| 端接类型 | Radial |
| 容差 | -20 to 80 % |
| 标准包装 | Trays |
| 匹配代码 | SUPC1,5F5,5V20 |
| 风格 | COIN |
| ESR（ AC） | 30Ohm |
| 直径 | 19mm |
| 单位包 | 100 |
| 标准的提前期 | 20 weeks |
| 最小起订量 | 2000 |
| C（N ） | 1.5F |
| 存储E /电池 | 0.0063Wh |
| T（A ）分 | -25°C |
| 细胞数 | 1S |
| 身高 | 6.5mm |
| 无铅Defin | RoHS-conform |
| 储能 | 0.0063Wh |
| T（A ）最大 | 70°C |
| 间距 | 20mm |
| 汽车 | NO |
| V（ N） | 5.5V |
| ACN内容 | NONElitre |
| 电容 | 1.5F |
| 引线直径 | 1mm |
| 引线间距 | 20mm |
| 寿命 | 1000h |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 安装类型 | Through Hole |
| 公差减 | -20% |
| 公差加 | +80% |
| RoHS指令 | Compliant |
| 工作温度范围 | -25C to 70C |
| 弧度硬化 | No |
| 公差（ +或 - ） | -20% to 80% |
| 引线间距（ NOM ） | 20 mm |
| 安装风格 | Through Hole |
| 封装 | Tray |
| 封装/外壳 | Not Required |
| 产品长度（mm ） | 20 mm |
| 产品厚度（毫米） | 19 mm |
| 产品高度（mm ） | 6 mm |
| 产品直径（mm ） | Not Required mm |
| 删除 | Compliant |
| 电容公差 | :+80%, -20% |
| 额定电压 | :5.5V |
| Capacitor Case Style | :- |
| Capacitor Terminals | :Radial Leaded |
| 引线间距 | :20mm |
| Operating Temperature Min | :-25°C |
| Operating Temperature Max | :70°C |
| 主体直径 | :19mm |
| Capacitor Mounting | :Through Hole |
| 外部深度 | :20mm |
| External Length / Height | :6mm |
| 外宽 | :19mm |
| Lead Cross-section Width | :0.2mm |
| 引线长度 | :1mm |
| No. of Pins | :2 |
| Operating Lifetime | :1000h |
| 工作温度范围 | :-25°C to +70°C |
| 系列 | :SG |
| 终端类型 | :PCB Pins |
| Tolerance + | :80% |
| Tolerance - | :20% |
| Tolerance Temperature | :20°C |
| Voltage Rating V DC | :5.5V |
| Weight (kg) | 0.004 |
| Tariff No. | 85322900 |
| Brand/Series | SGSeries |
| CaseSize | 19mmDia.x6mmL |
| LeadSpacing | 20mm |
| Material,Element | ElectricDoubleLayer |
| SpecialFeatures | SupercapacitorsandUltracapacitors |
| Temperature,Operating,Maximum | 70°C |
| Temperature,Operating,Minimum | –25°C |
| 端子 | StackedCoin |
| Voltage,Rating | 5.5VDC |
| Body dimensions | Ø20.5 x 6.5mm |
| Spatial orientation | horizontal |
| Gross weight | 4.5 g |
| Operating temperature | -25...70°C |
| Capacitor kind | backup capacitor, supercapacitor |
| Operating voltage | 5.5V |
| Multiplicity | 1 |
| Capacitor type | electrolytic |
| Terminal pitch | 20mm |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
