panasonic

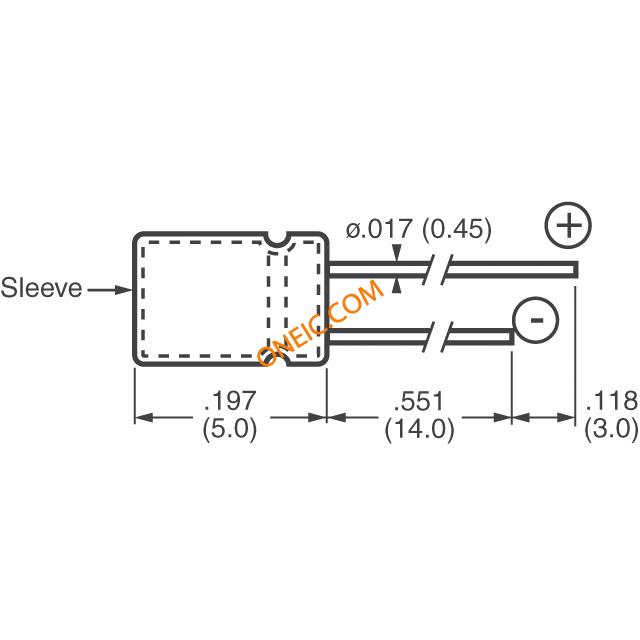

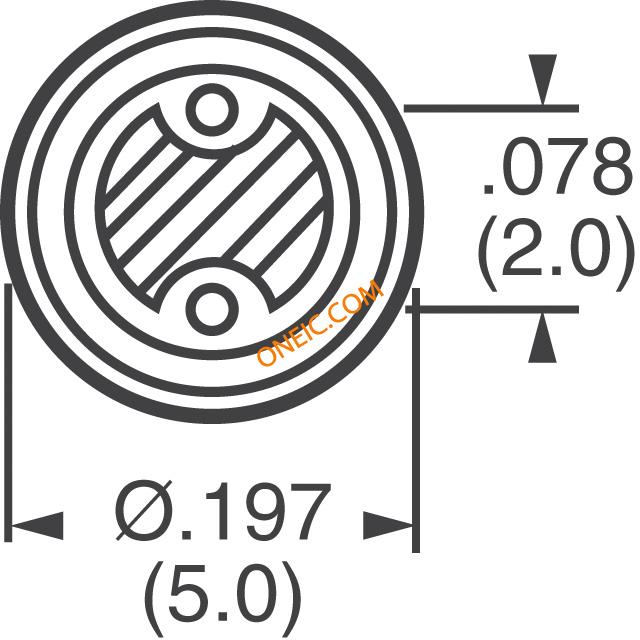

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装 | Through Hole |
| 电容值 | 10 uF |
| 电压 | 25 Vdc |
| 容差 | 20 % |
| 纹波电流 | 28 mA |
| 寿命 | 1000 h |
| 产品高度 | 5 mm |
| 引脚间距为径向 | 2 mm |
| 工作温度 | -40 to 85 °C |
| 端接类型 | Radial |
| 标准包装 | Bulk |
| RoHS | RoHS Compliant |
| 电容 | 10 uF |
| 额定电压 | 25 V |
| 工作温度范围 | - 40 C to + 85 C |
| 表壳直径 | 5 mm |
| 表壳长度 | 5 mm |
| 引线间距 | 2 mm |
| 产品 | General Purpose Electrolytic Capacitors |
| 封装 | Bulk |
| 负载寿命 | 1000 hr |
| 系列 | KS |
| 工厂包装数量 | 200 |
| Tensione | 25VDC |
| Durata | 1000 |
| Altezza prodotto | 5 |
| Corrente di dispersione | 3@2Min |
| TIPO | Electrolytic |
| Valore della capacità | 10uF |
| Montaggio | Through Hole |
| 阶梯termine | Radial |
| Confezione | Bulk |
| Corrente di ripple | 28 |
| Diametro lead | 0.45 |
| Tolleranza | 20% |
| Diametro del prodotto | 5 |
| Massima temperatura d'esercizio | 85 |
| Passo del lead per il radiale | 2 |
| 符合UE | Compliant |
| 工业别名 | ECEA1EKS100 |
| 子类别 | Capacitor Aluminum |
| 交货期 | 98 Days |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 5 mm Dia. x 5 mm L |
| Brand/Series | KS Series |
| 表壳尺寸 | 5 mm Dia. x 5 mm L |
| Current, Ripple | 0.028 A |
| Diameter, Lead | 0.45 mm |
| 寿命 | 1000 Hours |
| Material, Element | Aluminum Electrolytic |
| 温度范围 | –40 to +85 °C |
| 端子 | Radial |
| Voltage, Rating | 25 VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
